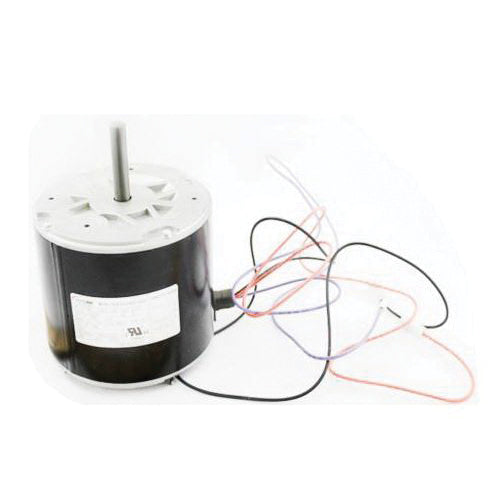

Allied Air 68J2401 Motor 1/3 hp 208/230 VAC 60 Hz 1 ph

Product Description

The Allied Air 68J2401 motor is designed to operate efficiently in a variety of applications. This electric motor provides reliable performance with a horsepower rating of one third. It operates at a voltage of two hundred eight to two hundred thirty VAC and is rated for sixty hertz.

• Amperage rating of 2.1 A
• Designed for condenser fan motors
• Permanent split capacitor motor type

Product Highlights

This motor is ideal for use in HVAC systems and is an essential component for achieving optimal system performance.

Product Information

Standard Information

• Brand: Allied Air
• Part Number: L2920

Technical Specifications

• Frame: 48
• Horsepower: 1/3 hp
• Phase: 1 ph
• Speed: 1075 rpm
• Voltage Rating: 208/230 VAC
• Amperage Rating: 2.1 A
• Application Type: Condenser Fan Motors
• Bearing Type: Sleeve
• Rotation: CCWLE
• Shaft Size: 1/2 in Dia x 2-3/4 in L
• Frequency Rating: 60 Hz
• Special Features: Permanent Split Capacitor Motors
• Number of Speeds: 1
