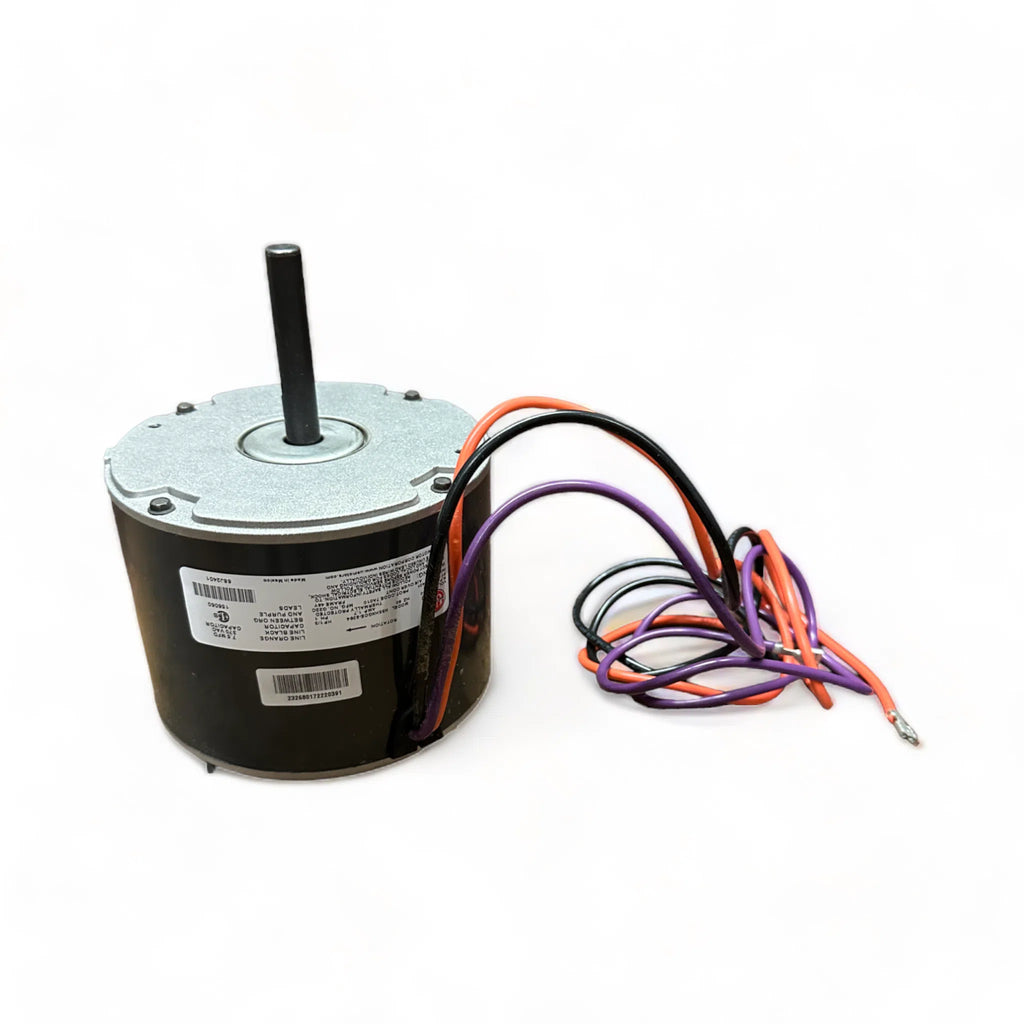

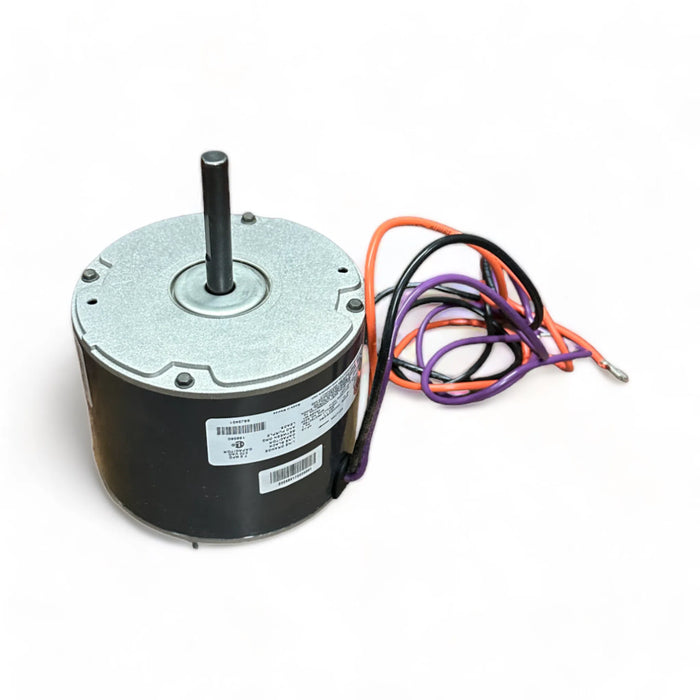

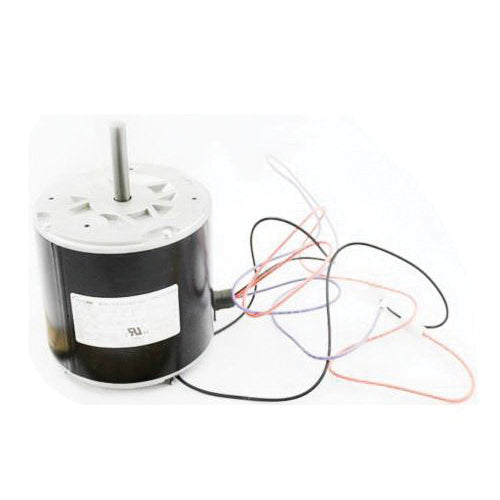

ALLIED AIR 68J24 Condenser Fan Motor 1/3 hp

Product Description

The ALLIED AIR 68J24 is a condenser fan motor suitable for various condenser applications. This motor operates at a voltage of 208/230 VAC and a frequency of 60 Hz. It delivers a power of 1/3 horsepower with a single-speed operation of 1075 RPM. Its design includes a single-phase configuration, a 48 frame, and a shaft diameter of one-half inch with a length of two and three-fourths inches, featuring counterclockwise rotation on the lead end.

• Optimized for condenser fan motor applications.
• Operates at 208/230 VAC and 60 Hz.
• Includes a sleeve bearing and permanent split capacitor.

Product Highlights

This motor is designed to provide reliable performance in various HVAC systems, ensuring efficient operation in cooling applications.

Product Information

Standard Information

• Brand: Allied Air
• Horsepower: 1/3 hp

Technical Specifications

• Input Voltage: 208/230 VAC
• Output Current: 2.1 A
• Frequency Rating: 60 Hz
• Phase: 1
• Speed: 1075 RPM
• Number of Speeds: 1
• Frame: 48
• Shaft Size: 1/2 in Dia x 2-3/4 in L
• Rotation: CCWLE
• Bearing Type: Sleeve
• Special Features: Permanent Split Capacitor Motor
