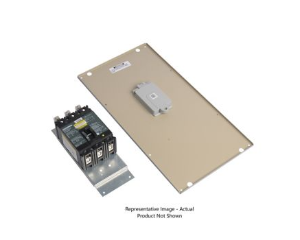

Allied Air 54w56 Disconnect Switch Kit 80A 3-pole

Product Description

The ALLIED AIR 54w56 is a 3-pole disconnect switch kit rated at 80 amps, designed for use in commercial HVAC applications. This kit provides a dedicated means of electrical disconnection, allowing service technicians to safely isolate equipment from the power supply before performing maintenance or repairs. At 2.0 pounds and compact in size, the unit is straightforward to mount in the field. Licensed electricians and HVAC technicians typically handle installation in accordance with local electrical codes and NEC requirements.

This disconnect switch kit is intended for commercial HVAC installations where a 3-pole, 80-amp disconnect is required. The kit is designed to be mounted near the equipment it serves, giving service personnel a local shutoff point. It is well suited for rooftop units, air handlers, and other commercial HVAC equipment requiring a code-compliant means of disconnect. The supplier part number C1DISC080B-1 is associated with this kit.

Key Features

• 80-amp amperage rating suitable for commercial HVAC load requirements
• 3-pole configuration for three-phase or multi-leg circuit applications
• Compact enclosure measuring 10 inches in length, 7 inches in width, and 7 inches in height
• Lightweight at 2.0 pounds for easier field handling and mounting
• Factory accessory kit format for straightforward installation

Compatibility

Designed as an OEM-style disconnect switch kit accessory for compatible commercial HVAC equipment. The supplier references part number C1DISC080B-1 in association with this kit. Verify application requirements and equipment compatibility before installation.

Installation Notes

Installation of this disconnect switch kit should be performed by a licensed electrician or qualified HVAC technician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always de-energize the circuit at the main panel and verify the absence of voltage with an appropriate meter before beginning work. Mount the disconnect in a location that provides clear access and visibility from the equipment being served. Do not exceed the rated amperage of the switch under any operating condition.

Technical Specifications

• Accessory Type: Disconnect Switch Kit
• Amperage Rating: 80 amps
• Number of Poles: 3-Pole
• Length: 10 inches
• Width: 7 inches
• Height: 7 inches
• Net Weight: 2.0 pounds

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 54w56
