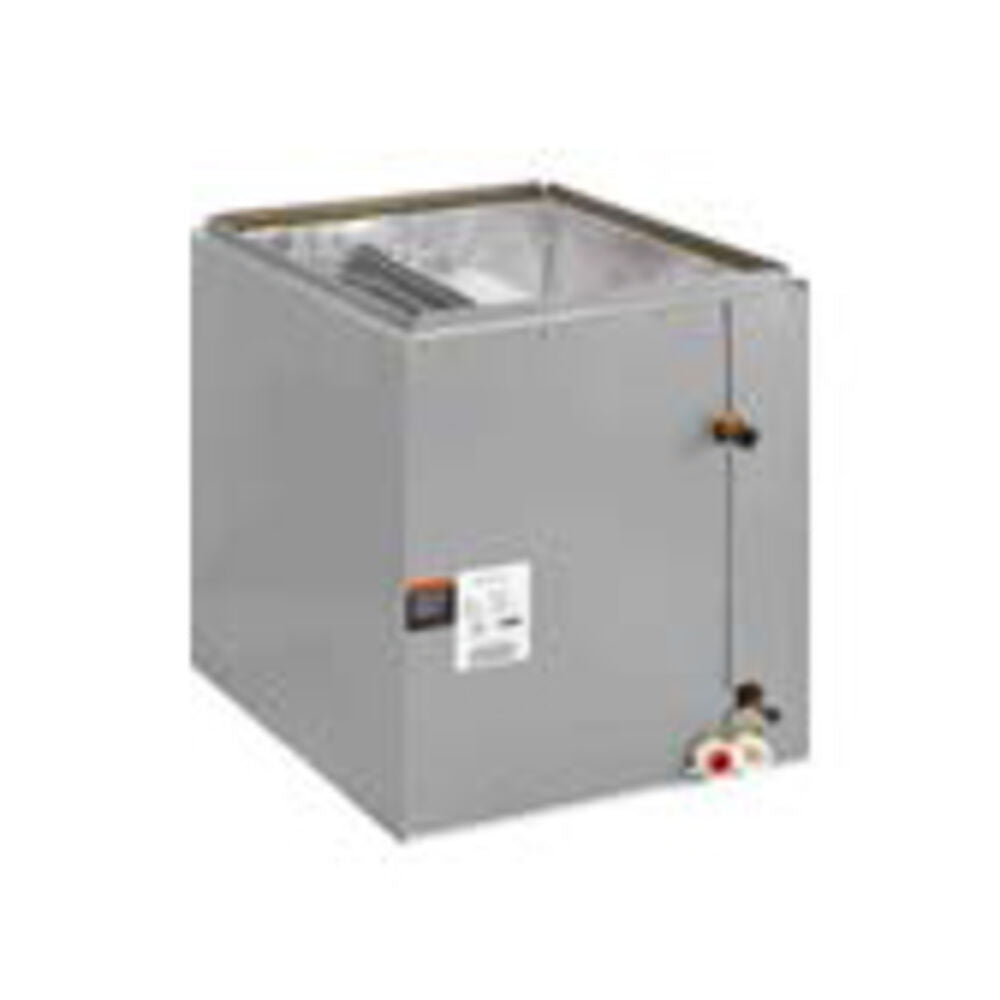

Allied Air 25V42 7EC60CX 5 Ton Upflow Cased Omniguard Hybrid Coil (31-1/2 in x 22 in D x 21 in W)

Product Description

Allied Air 25V42 is a 7EC60CX upflow cased Omniguard hybrid evaporator coil with a nominal 5 ton capacity, factory ready for R-410A and field-convertible to R-454B. The coil features aluminum tubing with hairpins, distributor and header tubes, copper refrigerant sweat connections on liquid and suction lines, and a factory-installed R-410A TXV. It is designed for upflow HVAC installations with a 1400 to 2400 cfm airflow range and slide-out coil access.

• Omniguard total corrosion protection with wall-to-wall foil-face insulation and pre-painted heavy gauge steel enclosure
• Factory ready for R-410A; field-convertible to R-454B with additional field kit and R454B TXV
• Aluminum tubing (hairpins, distributor, header), copper refrigerant sweat connections, factory-installed R-410A TXV, and preformed duct collar

Product Highlights

Upflow cased hybrid evaporator coil, 5 ton nominal capacity, 1400–2400 cfm, factory R-410A setup with field conversion to R-454B, slide-out coil access.

Product Information

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 25V42

Technical Specifications

• Brand: Allied Air
• Manufacturer Part Number: 25V42
• Model: 7EC60CX
• Series: 7EC-01
• Item Number: AAE7EC60CX
• Sub-Brand: Omniguard
• Manufacturer: Allied Air Enterprises
• Nominal Capacity: 5 ton
• Air Flow Type: Upflow
• Flow Rate: 1400 to 2400 cfm
• Refrigerant Compatibility: Factory ready for R-410A; field-convertible to R-454B (requires field kit and R454B TXV)
• Metering Device: Factory installed R-410A TXV
• Tubing Material: Aluminum
• Liquid Line Size: 3/8 in
• Suction Line Size: 7/8 in
• Enclosure Type: Cased
• Dimensions: 31.5 in x 22 in D x 21 in W
• UPC: 662551515840
