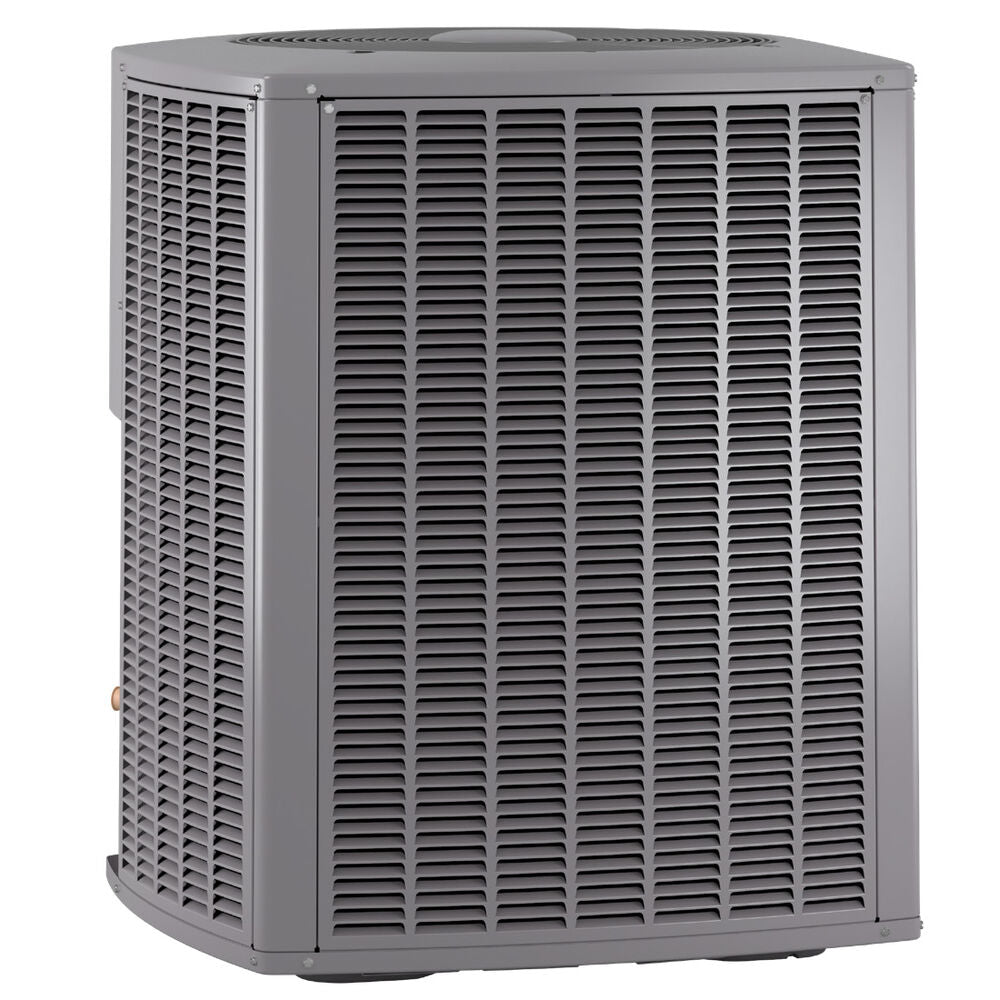

ALLIED AIR 25H40 Concord 25H40 Heat Pump Split System

Product Description

The ALLIED AIR 25H40 Concord 7HP14F Series Heat Pump Split System is designed for residential outdoor use. This system operates at a power source of two hundred eight/two hundred thirty volts single phase sixty hertz. It has a nominal capacity of five tons, making it suitable for providing efficient heating and cooling.

• Features a scroll compressor for improved efficiency.
• Utilizes R-454B refrigerant.
• Includes a durable steel cabinet for long life.

Product Highlights

The unit operates quietly at a sound level of seventy-nine decibels and achieves a Seasonal Energy Efficiency Ratio (SEER) rating of up to seventeen.

Product Information

Standard Information

• Brand Name: ALLIED AIR
• MPN: 25H40

Technical Specifications

• Series: 7HP14F Series
• Nominal Capacity: 5 ton
• Power Source: 208/230 V 1 ph 60 Hz
• SEER Rating: Up to 17
• HSPF Rating: Up to 8.2
• Compressor Type: Scroll
• Refrigerant Type: R-454B
• Suction Line Size: 7/8 in
• Motor HP: 1/3 hp
• Motor RPM: 830 rpm
• Fuse Size: 50 A
• Drive Type: Direct
• Sound Level: 79 dB
• Mounting Type: Outdoor
• Material: Steel
• Flow Rate: 4500 cfm
• Dimensions: 32-1/4 in W x 43-1/4 in H x 32-1/4 in D
• Voltage Rating: 208 / 230 V
• Frequency Rating: 60 Hz
