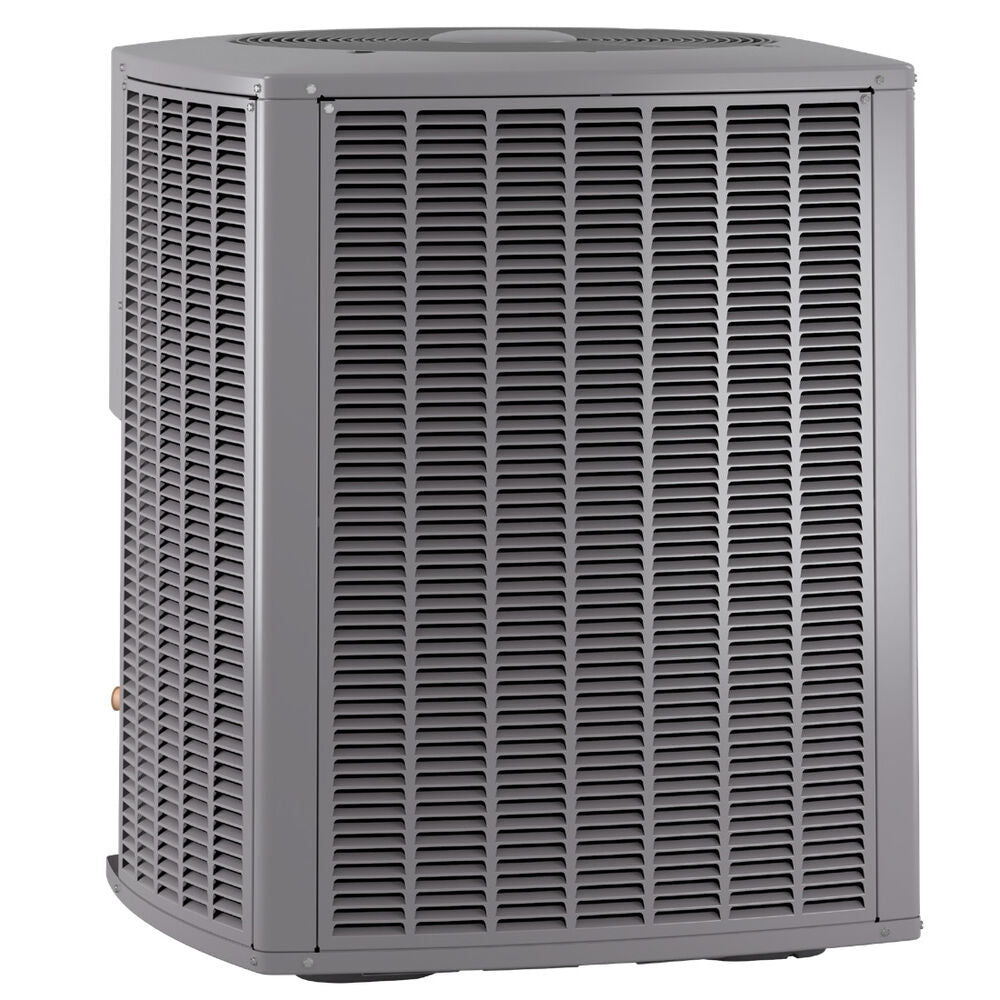

ALLIED AIR 25H18 Ducane 7HP14F36P Single-Stage Omniguard Heat Pump Split System

Product Description

The ALLIED AIR 25H18 Ducane 7HP14F36P is a single-stage Omniguard heat pump split system ideal for residential and light commercial applications. It includes an outdoor coil fan and a specialized Omniguard coil for added corrosion protection. The heat pump is equipped with a high-pressure switch for operational safety and features an expansion valve and a four-way reversing valve, allowing efficient heating and cooling.

• Includes a scroll compressor for quiet operation.
• Features a heavy-gauge steel cabinet with louvered coil protection.
• Utilizes R-454B refrigerant with a SEER2 rating of up to 17.

Product Highlights

This heat pump is designed to deliver effective temperature control while ensuring long-lasting performance.

Product Information

Standard Information

• Brand: ALLIED AIR
• MPN: 25H18

Technical Specifications

• Nominal Capacity: 3 ton
• Refrigerant Type: R-454B
• SEER2 Rating: Up to 17 SEER2
• Sound Level: 75 dBA
• Compressor Type: Scroll
• Dimensions: 32-1/4 in W x 33-1/4 in H x 32-1/4 in D
• Frequency Rating: 60 Hz
• Motor HP: 1/6 hp
• Outdoor Unit Liquid Connection Size: 3/8 in
• Outdoor Unit Suction Connection Size: 7/8 in
• Refrigerant Liquid Line Size: 3/8 in
• Refrigerant Suction Line Size: 7/8 in
• Series: 7HP14F
• TXV: TXV26Z70
• Voltage Rating: 208 / 230 V
