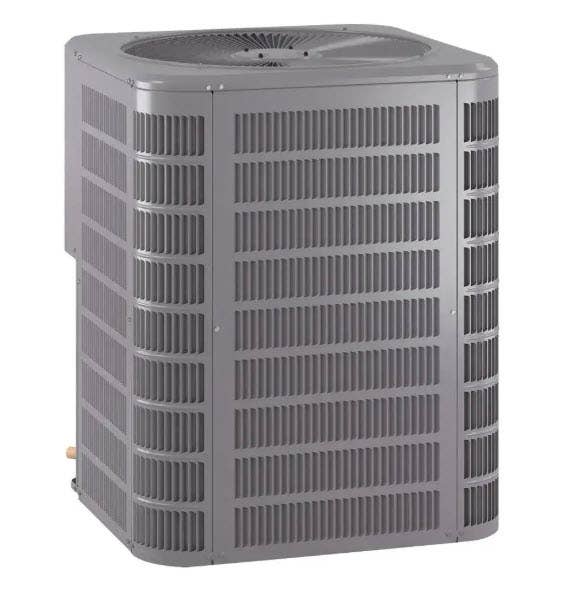

Allied Air 25F97 7AC13F Series Split System Air Conditioner 3 ton

Product Description

The ALLIED AIR 25F97 7AC13F Series Split System Air Conditioner is a 3-ton cooling unit operating at 208/230 V 1 ph 60 Hz with up to 16 SEER. Designed for residential and light commercial applications, this unit delivers cooling efficiency and operates with R-454B refrigerant for reduced environmental impact.

• 36,000 BTU/h (3 Ton) capacity
• 13.4 SEER2 efficiency, compliant with DOE 2023 regulations
• R-454B low-GWP A2L refrigerant

Product Highlights

Features a scroll compressor, corrosion-resistant steel cabinet, and top-discharge airflow design, offering consistent performance while facilitating service access.

Product Information

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 25F97

Technical Specifications

• Cooling Capacity: 36000 Btu/hr
• Dimensions: 28-1/4 in W x 33-1/4 in H x 28-1/4 in D
• Discharge Line Size: 3/8 in
• Flow Rate: 2800 cfm
• Fuse Size: 30 A
• Material: Steel
• Motor HP: 1/6 hp
• Motor RPM: 825 rpm
• Motor Type: Fan
• Mounting Type: Outdoor
• Nominal Capacity: 3 ton
• Number of Speeds: 1
• Power Source: 208/230 V 1 ph 60 Hz
• Refrigerant Type: R-454B
• SEER Rating: Up to 16
• Series: 7AC13F Series
• Sound Level: 76 dB
• Suction Line Size: 3/4 in
• System Type: Outdoor Unit
• Item Type: AC Condensers
• Brand: Concord
• Manufacturer: Allied Air Enterprises
• MPN: 25F97
• Sub Type: Air Condenser
• Primary Voltage: 208/230 V
