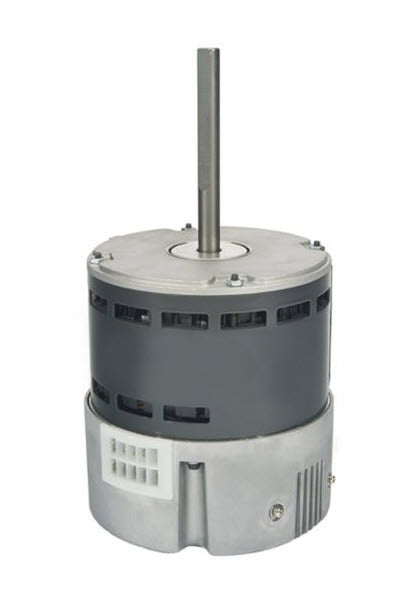

Allied Air 23v93 Ecm Constant Torque Blower Motor 1 Hp

Product Description

The ALLIED AIR 23v93 is a pre-programmed ECM constant torque blower motor rated at 1 horsepower and designed for commercial air handling applications. Operating on 115 volts at 60 Hz, it delivers variable airflow across five selectable speeds ranging from 550 to 1300 RPM. The electronically commutated motor design improves energy efficiency compared to standard PSC motors, making it well suited for installations where consistent torque and reduced power consumption are priorities. Licensed HVAC technicians and commercial service professionals are the typical installers for this type of motor.

The 23v93 is intended for commercial air handler and fan coil unit applications where a pre-programmed, drop-in ECM replacement is required. Its five-speed configuration allows field selection of airflow settings to match duct system requirements without external programming hardware. The constant torque operating mode maintains consistent performance across varying static pressure conditions, which is a common demand in commercial ducted systems.

Key Features

• Pre-programmed ECM constant torque design — no external programmer required
• 1 HP output rating suitable for commercial blower applications
• Five selectable speed taps ranging from 550 to 1300 RPM
• 115 volt, 60 Hz single-phase input
• Overall dimensions: 10.5 inches wide, 12.5 inches deep, 9.13 inches tall
• Constant torque operation maintains airflow across varying system static pressure

Compatibility

Designed as an OEM-style replacement ECM constant torque blower motor for compatible commercial air handler and fan coil unit applications requiring a 1 HP, 115 volt, 5-speed motor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the existing motor or making any wiring connections. Verify that the replacement motor speed tap selection matches the system design airflow requirements before startup. Follow all applicable local codes and manufacturer wiring diagrams when connecting motor leads.
