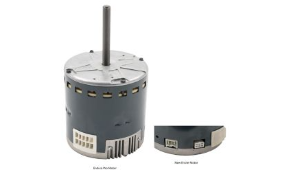

Allied Air 23v85 Ecm Constant Torque Blower Motor 1 Hp

Product Description

The ALLIED AIR 23v85 is a pre-programmed ECM constant torque blower motor rated at 1 horsepower and designed for residential and light commercial forced-air HVAC systems. Operating on 115 volts AC, single-phase, 60 Hz power, this motor delivers variable-speed airflow control across a 0 to 1100 RPM range without requiring external programming at installation. It ships as a replacement kit containing an Ensite motor paired with an adapter harness that converts the wiring back to the original Endura Pro connector configuration, allowing a direct swap on systems originally equipped with Endura Pro motors.

This motor is suited for use in air handlers and furnace blower assemblies where constant torque ECM operation is specified. The included adapter harness makes it applicable in installations where the original Endura Pro motor has failed and a direct OEM-style replacement is no longer available from the manufacturer. Licensed HVAC technicians performing blower motor replacements in residential or light commercial settings are the primary installers of this unit.

Key Features

• Pre-programmed ECM constant torque operation — no field programming required
• Rated 1 HP at 115 volts AC, single-phase, 60 Hz
• Speed range of 0 to 1100 RPM for variable airflow control
• Ships as a kit with Ensite motor and adapter harness for Endura Pro connector compatibility
• Drop-in replacement for systems originally equipped with Endura Pro constant torque motors

Compatibility

Designed as a replacement for HVAC blower assemblies originally equipped with Endura Pro constant torque ECM motors. The kit includes an adapter harness to maintain connector compatibility with Endura Pro wiring configurations.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the air handler or furnace before removing the existing blower motor. Verify the adapter harness is fully seated and secured before restoring power. Confirm motor rotation direction and airflow performance after installation per the equipment manufacturer's service instructions.
