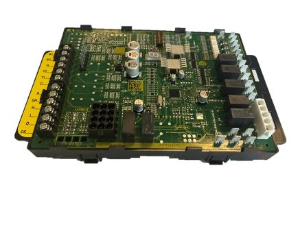

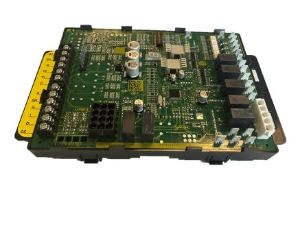

Allied Air 22k53 Ignition Control Board Kit

Product Description

The ALLIED AIR 22k53 is an ignition control board kit designed as an accessory replacement for gas furnace ignition systems. This control kit manages the ignition sequence in compatible furnaces, coordinating the timing of spark or hot-surface ignition, gas valve actuation, and flame sensing to ensure safe and reliable furnace startup. Licensed HVAC technicians install this kit during service calls where the ignition control circuit has failed or is causing lockout faults. The kit format means it includes the necessary components for a complete control replacement rather than a single board swap.

This ignition control kit is specified for use in A96 and A97 series gas furnaces. These are residential forced-air furnace platforms that operate at high-efficiency ratings. The 22k53 kit is appropriate for both planned maintenance replacement and emergency service situations where the ignition control is confirmed as the failed component. Installers should verify the furnace model designation before ordering to confirm correct fitment within the A96 and A97 product lines.

Key Features

• Factory-designated ignition control kit for A96 and A97 furnace platforms
• Accessory kit format provides all components needed for ignition control replacement
• Designed for residential gas furnace ignition sequence management
• OEM-specified part number ensures correct form, fit, and function

Compatibility

Designed for use in A96 and A97 series gas furnaces as specified by the manufacturer.

Installation Notes

Ignition control board replacement is a task for licensed HVAC technicians familiar with gas furnace controls and low-voltage wiring. Before servicing, shut off the electrical supply to the furnace at the disconnect and turn off the gas supply at the service valve. Follow all applicable local codes and manufacturer wiring diagrams when reconnecting control circuits. Do not attempt to energize the board or fire the furnace without confirming all gas connections are secure and the heat exchanger is intact.

Technical Specifications

• Part Type: Ignition Control Board Kit
• Application: A96 and A97 Gas Furnaces

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 22k53
