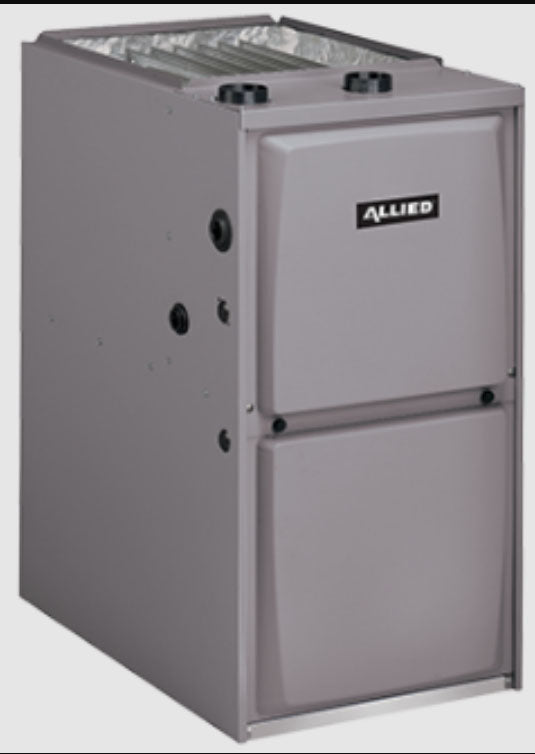

Allied Air 18L98 96% 2 Stage V/S 135K BTU (Upflow/Horizontal) 96G2UH135DV20

Product Description

Allied Air 18L98 is a 96% AFUE, two-stage gas furnace (model 96G2UH135DV20) providing 88,000 BTU/hr input and 84,000 BTU/hr output with a model rating of 135K BTU. It uses a variable-speed ECM blower (1 HP, 2000 CFM), upflow/horizontal orientation, AL 29-4C stainless steel secondary heat exchanger, and hot surface silicon nitride ignition with integrated control that retains the last five fault codes. Electrical is 120 VAC, 1-phase.

• 96% AFUE, two-stage operation with AL 29-4C stainless steel secondary heat exchanger
• Variable-speed ECM blower motor (1 HP, 2000 CFM) with soft-start/soft-stop and removable slide-out design
• 120 VAC 1-phase electrical, hot surface silicon nitride ignition, System Sentry control, upflow/horizontal and direct vent capable

Product Highlights

96% AFUE two-stage, variable-speed 135K BTU furnace for upflow/horizontal installation

Product Information

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 18L98

Technical Specifications

• Brand: Allied Air
• Manufacturer Part Number: 18L98
• Alternate Part Number: 96G2UH135DV20
• Model Series: 96G2V
• Type: 2-Stage, Upflow/Horizontal, Variable Speed gas furnace
• AFUE Rating: 96%
• Input Capacity (BTU/hr): 88,000
• Output Capacity (BTU/hr): 84,000
• Model Rated Capacity: 135,000 BTU
• Input Voltage: 120 VAC
• Phase: 1-Phase
• Current Rating: 20 Amp (breaker), 12.8 Amp (full load)
• Motor Power: 1 HP (ECM blower motor)
• Airflow: 2000 CFM
• Blower Size: 11 in x 11 in (approximate blower inlet/outlet dimension)
• Control Type: System Sentry control; includes transformer (40 VA typical)
• Ignition Type: Hot surface ignition (silicon nitride igniter)
• Secondary Heat Exchanger Material: AL 29-4C stainless steel
• Primary Heat Exchanger: Aluminized steel primary heat exchanger (crimped)
• Induced Draft Motor: Induced draft motor (manufacturer lists multi-speed/controlled draft)
• Orientation: Upflow/Horizontal
• Venting: Direct vent capable
• Gas Inlet Size: 1/2 inch
• Dimensions (WxDxH): 17-1/2 in x 28-1/2 in x 33 in
• Standards/Certifications: AHRI, CSA
• Features: System Sentry control retains last 5 fault codes; isolated burner enclosure; insulated heat exchanger compartment; dynamically balanced blower wheel; active and passive dehumidification; left or right gas and electric entry; zero step horizontal conversion; removable slide-out blower
