Allied Air 16G89 Multi-position Air Handler 4 Ton

Product Description

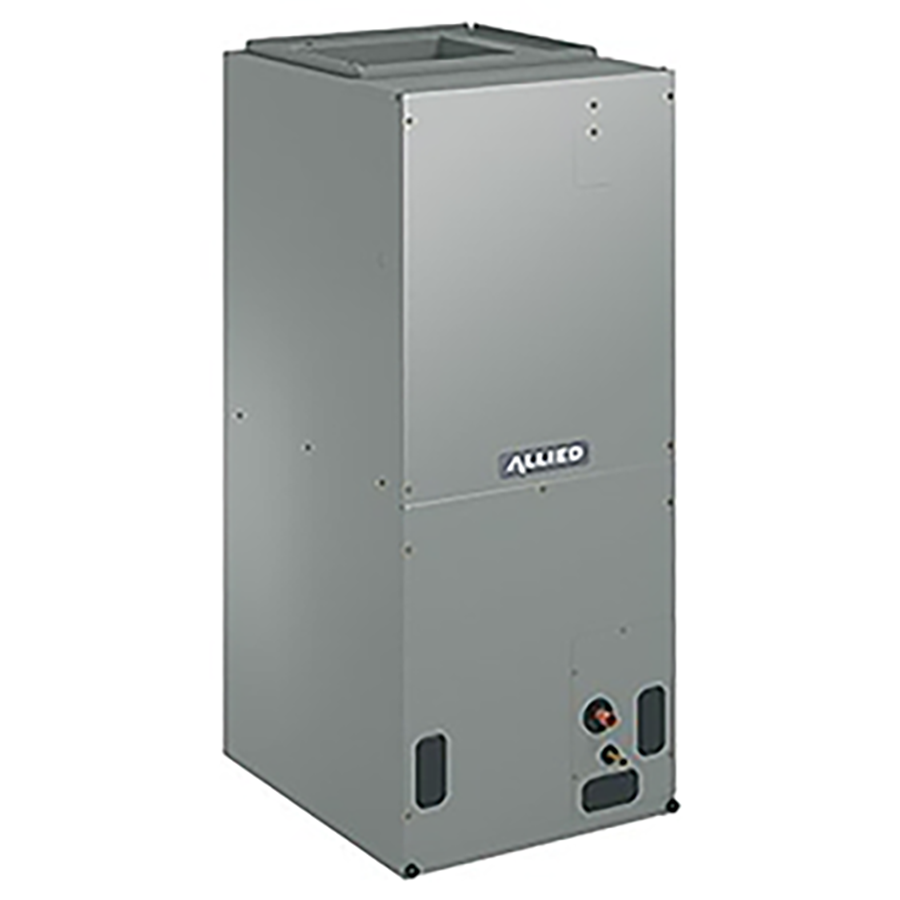

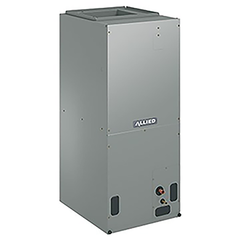

The ALLIED AIR 16G89 is a multi-position blower coil air handler rated at 4 nominal tons, designed for split-system cooling and heat pump applications in residential and light commercial settings. The unit ships with an expansion valve (TXV) factory-installed, eliminating the need for a field-supplied metering device and supporting more precise refrigerant management across a range of operating conditions. Its compact cabinet profile allows installation in upflow or downflow orientations, giving installing technicians flexibility when working with constrained mechanical rooms or closet installations. The unit measures 55 inches tall, 21.5 inches wide, and 22 inches deep.

The 16G89 is suited for residential new construction and retrofit projects where a multi-position, enhanced blower coil unit is required. The compact form factor makes it practical for tight utility closets, alcoves, and basement installations where a full-size air handler may not fit. Licensed HVAC technicians typically specify this unit alongside a matched outdoor condensing unit or heat pump as part of a complete split system.

Key Features

• 4 nominal ton capacity for residential and light commercial split systems
• Multi-position cabinet supports upflow and downflow installations
• Factory-installed expansion valve (TXV) for accurate refrigerant metering
• Compact cabinet dimensions: 55 inches tall, 21.5 inches wide, 22 inches deep
• Enhanced blower coil design for improved airflow and heat transfer performance

Compatibility

Designed as an OEM-style multi-position blower coil air handler for use in residential and light commercial split-system cooling and heat pump configurations requiring a 4-ton nominal capacity unit with a factory-installed expansion valve.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect and lock out all electrical power before servicing or connecting the unit. Refrigerant system work requires an EPA Section 608 certified technician. Verify that duct connections, drain pan piping, and condensate lines meet local building code requirements before commissioning.

Technical Specifications

• Nominal Capacity: 4 tons
• Installation Positions: Upflow, Downflow
• Metering Device: Expansion valve (TXV), factory-installed
• Height: 55 inches
• Width: 21.5 inches
• Depth: 22 inches

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 16G89
