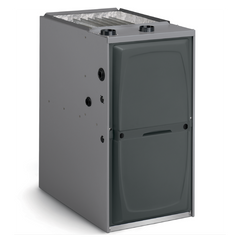

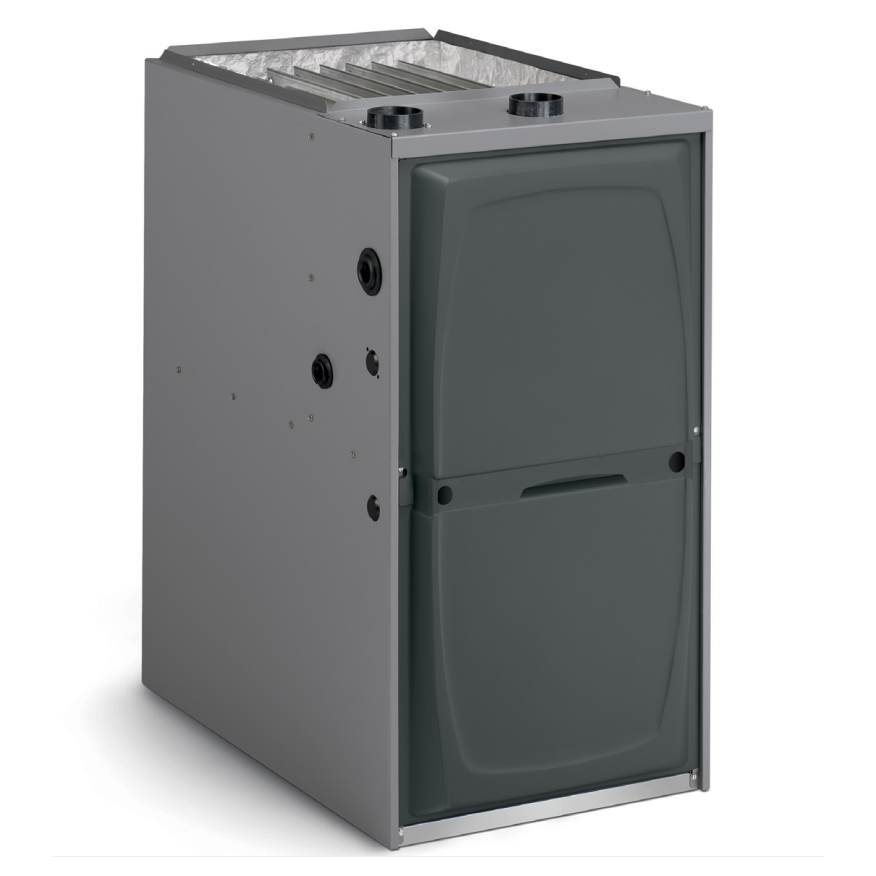

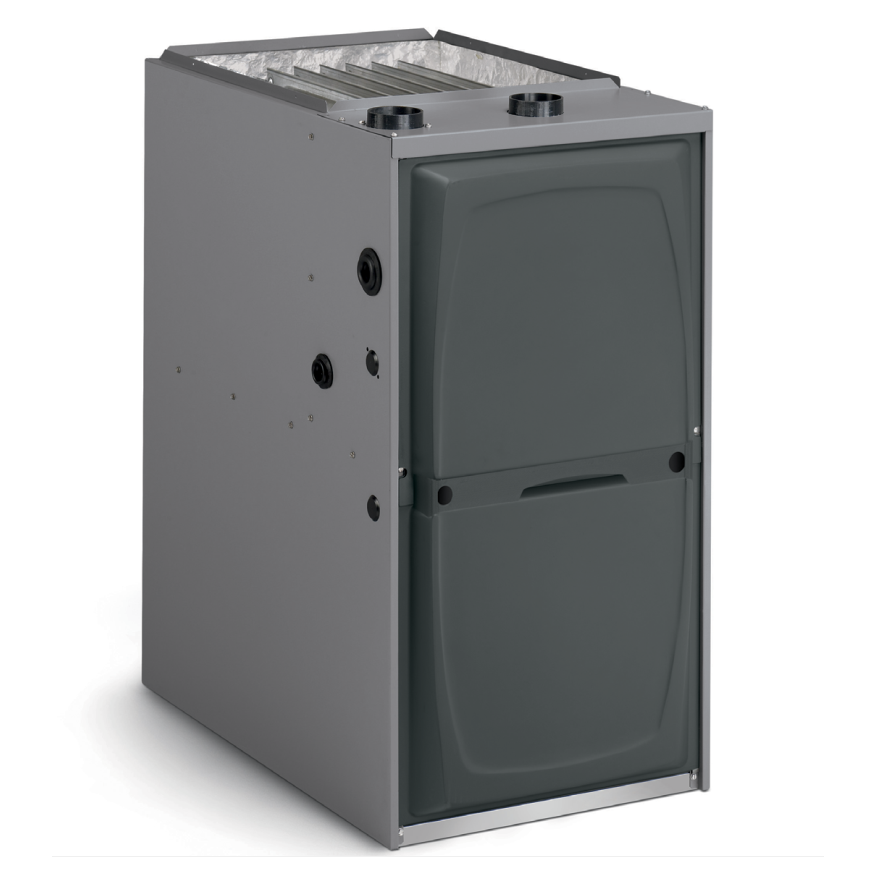

Allied Air 14D38 Two-Stage Gas Furnace 110,000 Btu/hr (21 in) Replacement A96UH2E110C20S

Product Description

Allied Air 14D38 is a two-stage natural gas furnace with a 110,000 Btu/hr input capacity and 96% AFUE rating. It supports upflow and horizontal configurations, uses an ECM blower motor and a stainless steel heat exchanger, and operates at 120 VAC with silicon nitride ignition. The unit corresponds to a nominal 5-ton cooling capacity and fits a 21 inch cabinet width for residential HVAC installations.

• Two-stage operation with 110,000 Btu/hr input and 105,000 Btu/hr output; 96% AFUE
• ECM high-efficiency blower drive, stainless steel heat exchanger, silicon nitride ignition
• Designed for upflow/horizontal installation; 21 in width, 120 VAC, natural gas connection

Product Highlights

Two-stage natural gas furnace, 96% AFUE, 110,000 Btu/hr input, ECM blower, 21 in width

Product Information

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 14D38

Technical Specifications

• Brand: Allied Air
• Manufacturer: Allied Air Enterprises
• Manufacturer Part Number: 14D38
• Replacement Part Number: A96UH2E110C20S
• Model/Series: A962E
• Input Capacity: 110,000 Btu/hr
• Output Capacity: 105,000 Btu/hr
• AFUE Rating: 96%
• Configuration: Upflow / Horizontal
• Stages: Two-Stage
• Motor Type: High-efficiency blower drive (ECM)
• Nominal Cooling Capacity: 5 tons
• Connection Size: 1/2 in
• Dimensions: 21 in W x 28.5 in D x 33 in H
• Width: 21 in
• Fuse Size: 15 A
• Gas Type: Natural Gas
• Ignition Type: Silicon Nitride (ignitor)
• Voltage Rating: 120 VAC
• Type: 2-Stage
• APR Part Number: 1824094
