Allied Air 14c44 Two-stage Gas Furnace 96% Afue Ecm

Product Description

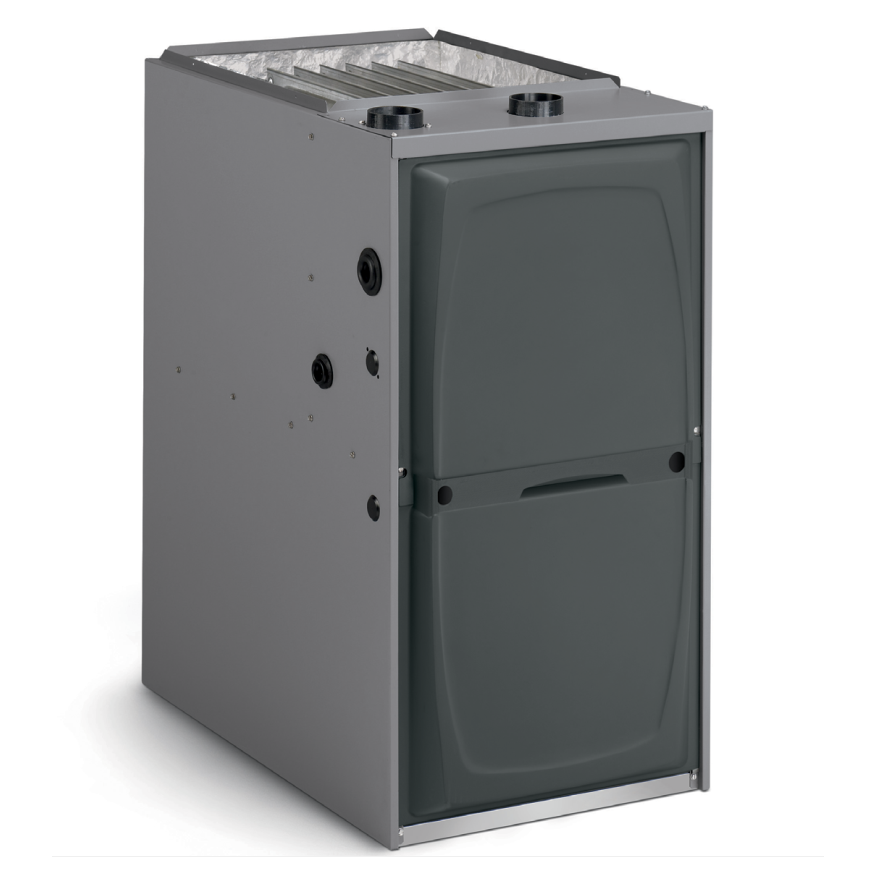

The ALLIED AIR 14c44 is a two-stage upflow and horizontal natural gas furnace rated at 96% AFUE, designed for residential forced-air heating systems. It delivers 30,500 BTU/h input and 29,000 BTU/h output, making it well suited for smaller zone applications or homes with lower heating load requirements. The unit runs on 120 volts AC and uses a silicon nitride igniter for reliable cold-weather starting. A high-efficiency ECM blower motor supports quieter operation and reduced electrical consumption compared to standard PSC motors. Licensed HVAC technicians perform installation and commissioning on this unit.

The 14c44 is configured for upflow or horizontal installation, giving contractors flexibility in tight mechanical room layouts or attic installations. At 17.5 inches wide, 28.5 inches deep, and 33 inches tall, it fits in standard utility closets and alcoves sized for compact furnaces. The two-stage burner allows the unit to operate at a reduced first stage under partial load conditions, reducing short-cycling and improving comfort. This furnace belongs to the A962E series and is intended for natural gas supply lines with a half-inch connection size.

Key Features

• 96% AFUE rating reduces fuel consumption compared to standard-efficiency units
• Two-stage operation minimizes short-cycling and supports better temperature consistency
• ECM high-efficiency blower motor lowers electrical draw during fan operation
• Silicon nitride ignition provides durable, consistent spark-free lighting
• Upflow and horizontal configuration support flexible installation orientations
• Compact 17.5-inch width fits standard narrow furnace alcoves and closets

Compatibility

The 14c44 belongs to the ALLIED AIR A962E series. It is designed for natural gas systems and accepts a half-inch gas connection. Consult the equipment submittal and installation manual to confirm compatibility with existing duct configurations, thermostat wiring, and gas supply specifications before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the International Fuel Gas Code (IFGC), local mechanical codes, and the manufacturer installation manual. Shut off electrical power at the disconnect and close the gas supply valve before any service or connection work. The ECM blower wiring and control board low-voltage connections should be verified against the unit wiring diagram before energizing. Do not operate the furnace without confirming proper venting, combustion air supply, and gas line pressure testing per applicable code.

Technical Specifications

• Input Capacity: 30,500 BTU/h
• Output Capacity: 29,000 BTU/h
• AFUE Rating: 96%
• Stages: Two-Stage
• Configuration: Upflow / Horizontal
• Motor Type: High-Efficiency ECM Blower Drive
• Voltage Rating: 120 VAC
• Fuse Size: 15 amps
• Gas Type: Natural Gas
• Ignition Type: Silicon Nitride
• Gas Connection Size: 0.5 inches
• Dimensions: 17.5 inches W x 28.5 inches D x 33 inches H
• Series: A962E

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 14c44
