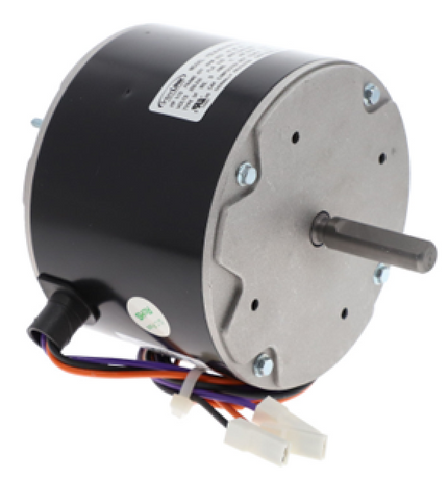

Allied Air 100483-45 Condenser Fan Motor 1/10 HP (Stud Mount) 13Y95

Product Description

Allied Air 100483-45 is a condenser fan motor that delivers 1/10 horsepower at 208-230 V AC, 60 Hz, single-phase for HVAC condenser applications. The motor is intended to drive fan blades to circulate air and assist refrigerant cooling. Typical construction for this motor family includes a Permanent Split Capacitor (PSC) design and a Totally Enclosed Air-Over (TEAO) enclosure with stud-type mounting for vertical shaft down installations.

• Electrical: 1/10 HP, 208-230 V AC, 60 Hz, single-phase operation
• Motor design: Typically Permanent Split Capacitor (PSC) with Totally Enclosed Air-Over (TEAO) enclosure
• Mounting and orientation: Stud-type mounting, typically vertical shaft down; weight approximately 8 lb; commonly UL and CSA certified

Product Highlights

Condenser fan motor, 1/10 HP, 208-230 V AC, single-phase; stud mounting; PSC design and TEAO enclosure typical.

Product Information

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 100483-45
