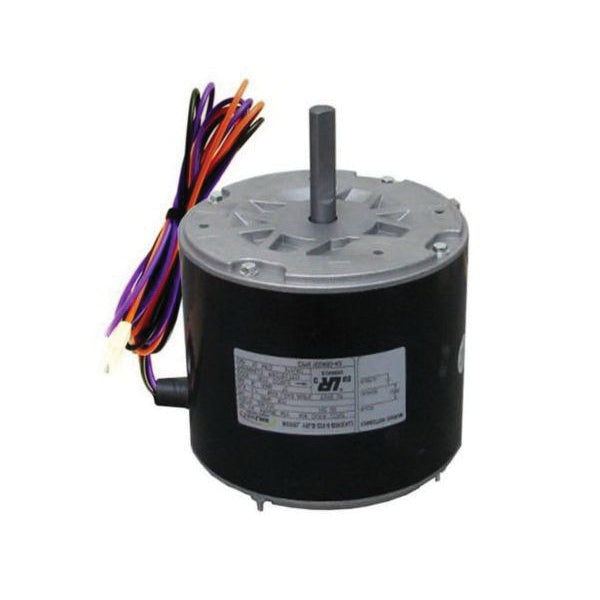

Allied Air 100483-43 Motor Totally Enclosed Enclosure 1/4 hp 208/230 VAC

Product Description

The Allied Air 100483-43 motor is a totally enclosed enclosure motor with a rating of one-quarter horsepower. It operates at 208/230 VAC and is suitable for various applications such as condenser fan motors. With a speed of 825 revolutions per minute, this motor is designed for efficiency. The motor's design includes a stud mount, making installation straightforward.

• Horsepower: 1/4 hp
• Voltage: 208/230 VAC
• Speed: 825 rpm

Product Highlights

This motor is ideal for HVAC applications needing reliable performance in a compact form. It enhances cooling systems and is built for durability.

Product Information

Standard Information

• Brand: Allied Air
• Model Number: 100483-43

Technical Specifications

• Amperage Rating: 1.7 A
• Application Type: Condenser Fan Motors
• Bearing Type: Ball
• Dimensions: 5.5 in Dia x 7.18 in H
• Enclosure Type: Totally Enclosed
• Frame: 48
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Mounting Type: Stud
• Number of Speeds: 1
• Phase: 1 ph
• Rotation: CCWLE
• Shaft Size: 1/2 in Dia x 1-1/2 in L
• Special Features: Permanent Split Capacitor Motors
