Product Description

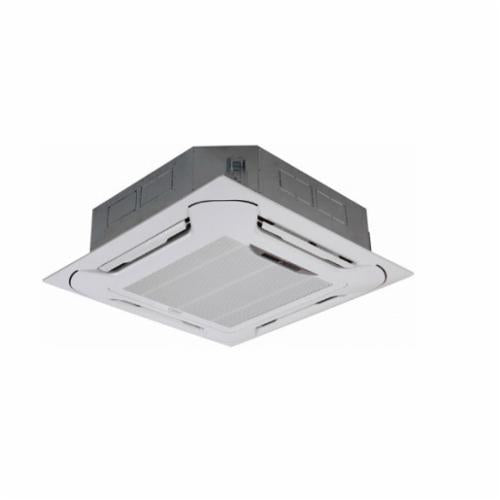

The Allied Air 1.861102 is a ceiling cassette indoor unit designed for efficient heating and cooling in residential and commercial spaces. With a cooling capacity of 24000 BTUH, this unit operates efficiently with an EER of 12.5 and a SEER of 20. It is suitable for ductless applications, using R-410A refrigerant and featuring rotary compressor technology.
- Cooling operation from sixty-two to ninety degrees Fahrenheit
- Heating operation from thirty-two to eighty-six degrees Fahrenheit
- Lightweight design at fifty-six pounds
Product Highlights
This mini split equipment is optimal for areas where conventional ducted systems are not feasible. Its non-ducted design allows for easy installation and improved air circulation.
Product Information
Standard Information
-
Brand: Allied Air
-
Part Number: L6456
Technical Specifications
-
Compressor Type: Rotary
-
Cooling Capacity: 2 ton
-
Dimensions: 37-3/8 inches L x 37-3/8 inches W x 8-1/8 inches H
-
Efficiency Rating EER: 12.5
-
Efficiency Rating SEER: 20
-
Flow Rate: 573 to 700 cfm
-
Line Size (Suction): 5/8 inches
-
Line Size (Liquid): 3/8 inches
-
Mfg Standards/Approvals: AHRI Certified, cETLus Listed
-
Power Source: 208 to 230 VAC 60 Hz 1 ph
-
Refrigerant Type: R-410A
-
Type: Ductless Single-Zone
