Allied Air 1.612119 Electric Packaged Ac 4 Ton 14 Seer

Product Description

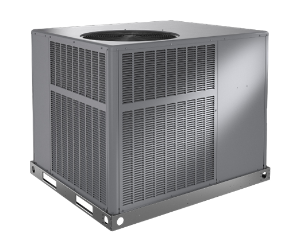

The ALLIED AIR 1.612119 is a self-contained electric packaged air conditioner unit rated at 4 nominal tons and 48,000 BTU/h of cooling capacity. Built on a pre-painted steel cabinet, this unit operates on 208/230V, 60 Hz, single-phase power and uses R-410A refrigerant. It carries a 14 SEER and 11 EER efficiency rating, making it a compliant choice for residential and light commercial replacement projects. A 3/4 hp constant torque blower motor and a 1/4 hp condenser motor deliver 1600 cfm of airflow. Licensed HVAC technicians install and service this equipment.

This packaged unit is designed for rooftop or ground-level installation in applications where all mechanical components must be housed in a single outdoor cabinet. It is well suited for residential structures, small commercial buildings, and retrofit projects where split-system installation is not practical. The single-phase electrical configuration keeps wiring requirements straightforward for standard residential service entrances. The unit ships as a complete, factory-charged assembly.

Key Features

• 4 nominal ton cooling capacity at 48,000 BTU/h
• 14 SEER and 11 EER efficiency ratings
• 208/230V, 60 Hz, single-phase power supply
• R-410A refrigerant with factory charge
• 1600 cfm airflow via constant torque blower motor
• Pre-painted steel cabinet construction
• Sound level rated at 77 dBA

Compatibility

Designed as an OEM-style electric packaged unit replacement for residential and light commercial applications requiring a self-contained, single-phase cooling system.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect and lock out all electrical power before servicing or connecting the unit. Fuse sizing is rated at 45 amps; verify that the existing circuit and disconnect meet this requirement before energizing. Confirm that ductwork connections and roof curb or pad dimensions match the unit footprint prior to final placement.

Technical Specifications

• Nominal Capacity: 4 ton
• Cooling Capacity: 48,000 BTU/h
• SEER Rating: 14
• EER Rating: 11.0
• Voltage Rating: 208/230V AC
• Frequency Rating: 60 Hz
• Number of Phases: 1
• Fuse Size: 45 amps
• Airflow: 1600 cfm
• Blower Motor: 3/4 hp Constant Torque
• Condenser Motor: 1/4 hp
• Refrigerant Type: R-410A
• Sound Level: 77 dBA
• Height: 48 inches
• Width: 48 inches
• Length: 57.25 inches
• Material: Pre-Painted Steel

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 1.612119
