Allied Air 1.612116 Packaged Ac 2.5 Ton 14 Seer 208/230V

Product Description

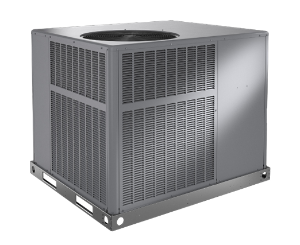

The ALLIED AIR 1.612116 is a self-contained electric packaged air conditioner and heating unit designed for rooftop or ground-level installation in residential and light commercial applications. Rated at 2.5 nominal tons of cooling capacity, it delivers 14 SEER and 11 EER efficiency with a 208/230-volt, single-phase, 60 Hz power supply. The unit uses R410A refrigerant and integrates a constant-torque ECM blower motor rated at 1/2 hp alongside a 1/6 hp condenser motor. Airflow is rated at 1,000 CFM. Licensed HVAC technicians handle installation and commissioning of this type of equipment.

This packaged unit suits residential replacement projects and small commercial rooftop applications where a single self-contained cabinet handles both cooling and supplemental electric heating. The 30,000 BTU/h heating capacity covers typical light-duty heating loads in mild climates. The unit cabinet measures 48.0 inches wide by 42.5 inches tall, making it compatible with standard curb dimensions common in residential and small commercial rooftop installations. Sound output is rated at 79 dBA. The single-phase power configuration keeps electrical infrastructure requirements straightforward for most residential service panels.

Key Features

• 14 SEER and 11 EER efficiency ratings for compliant performance in applicable regions
• 2.5-ton nominal cooling capacity with 1,000 CFM rated airflow
• 30,000 BTU/h electric heating capacity integrated in one cabinet
• R410A refrigerant system with constant-torque blower motor for consistent static pressure performance
• 208/230V single-phase 60 Hz power supply with 25-amp fuse sizing
• 79 dBA sound rating for a packaged rooftop unit of this capacity

Compatibility

Designed as an OEM-style packaged electric cooling and heating unit suitable for residential and light commercial rooftop or ground-mount applications using standard duct connections and curb adapters compatible with 48.0-inch-wide packaged unit footprints.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation manual. Disconnect and lock out all electrical power before servicing the unit or making any electrical connections. Verify the supply circuit is sized for the 25-amp fuse requirement and that the disconnect switch is located within sight of the unit per NEC requirements. Confirm the mounting curb or pad is level and structurally adequate to support the unit weight before setting the cabinet.

Technical Specifications

• Nominal Cooling Capacity: 2.5 tons
• SEER Rating: 14
• EER Rating: 11.0
• Heating Capacity: 30,000 BTU/h
• Airflow: 1,000 CFM
• Voltage: 208/230V
• Phase: 1 Phase
• Frequency: 60 Hz
• Fuse Size: 25 amps
• Blower Motor: 1/2 hp Constant Torque
• Condenser Motor: 1/6 hp
• Refrigerant: R410A
• Sound Level: 79 dBA
• Width: 48.0 inches
• Height: 42.5 inches

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 1.612116
