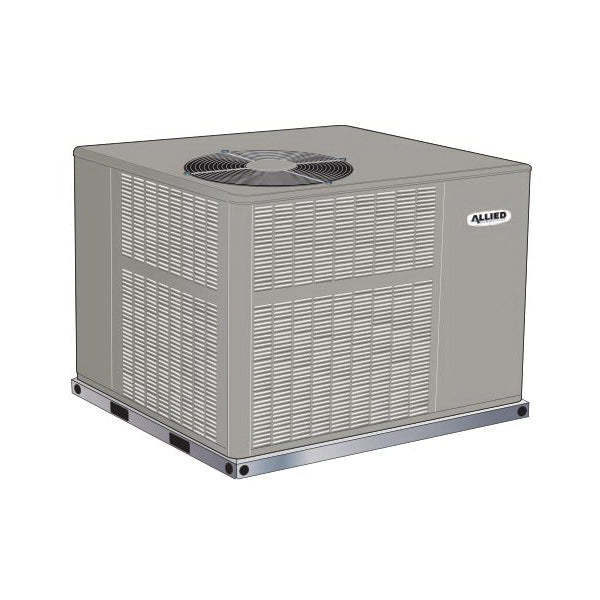

Allied Air 1.603351 Ducane Q Series/QGA Standard Efficiency Gas Heating/Electric Cooling Packaged Unit 5 ton

Product Description

The Allied Air 1.603351 is a Ducane Q Series/QGA packaged unit designed for both heating and cooling applications. This unit provides standard efficiency performance with a heating capacity of 108000 Btu/hr input and 87480 Btu/hr output. It operates on 230 VAC with a three-phase motor system, ensuring reliable functionality in various environmental conditions.

• Accommodates horizontal and downflow applications
• Factory installed float switch for increased safety
• Plug-and-play accessories for easy installation

Product Highlights

This unit is suitable for residential and commercial spaces needing efficient heating and cooling solutions. It integrates easily into existing systems, making it versatile for many HVAC applications.

Product Information

Standard Information

• Brand: Allied Air
• Part Number: K2220

Technical Specifications

• AFUE Rating: 81 %
• Cooling Capacity: 57000 Btu/hr Net / 59000 Btu/hr Gross
• EER Rating: 11.5
• SEER Rating: 14
• Nominal Capacity: 5 ton
• Dimensions: 56-1/8 in W x 47-5/8 in D x 44-7/8 in H
• Flow Rate: 1800 cfm
• Refrigerant Type: R-410A
• Temperature Rating: 45 to 75 deg F
• Voltage Rating: 230 VAC
• Motor HP: 1 hp Blower, 1/3 hp Fan
• Material: Steel
• Drive Type: Direct
• Control Type: Electronic Blower
