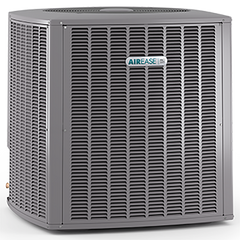

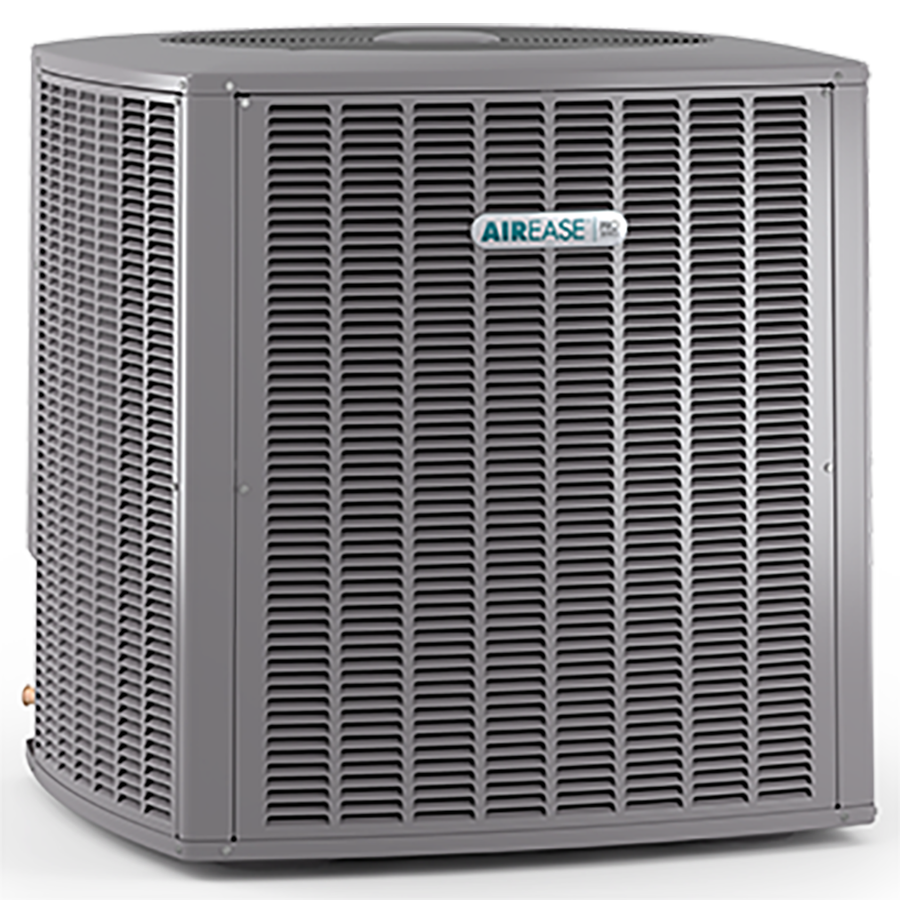

Allied Air 1.471009 Heat Pump Outdoor Unit 2 Ton 22 Seer

Product Description

The ALLIED AIR 1.471009 is a 2-ton inverter-driven heat pump outdoor unit designed for residential and light-commercial split systems. It operates on R-410A refrigerant and achieves up to 22 SEER efficiency through a variable-capacity inverter compressor that modulates output to match the load. Cooling capacity is 24,000 BTU/h and heating capacity is 22,400 BTU/h. The unit is built for a wide operating range, rated to perform in ambient temperatures from -15 degrees F to 125 degrees F. Installation is handled by licensed HVAC technicians as part of a split-system retrofit or new construction application.

This unit is suited for residential split-system installations where high-efficiency inverter technology is required. It supports both fully communicating system configurations and standard 24-volt thermostat setups, giving installers flexibility on equipment pairing. Comfort Sync compatibility enables communicating control when paired with appropriate air handlers and thermostats. The unit ships factory charged for 15 feet of line set, and the factory-installed TXV, high-pressure switch, and low-pressure switch reduce field labor. The louvered cabinet with removable panels and external gauge ports allow straightforward service access. The unit complies with Florida Building Code 2020.

Key Features

• Inverter-driven variable-capacity compressor for precise capacity modulation and energy savings
• Factory-installed TXV, crankcase heater, and high and low pressure switches reduce field installation time
• Clean-sweep and demand defrost modes with Quiet Shift capability to minimize noise during defrost cycles
• All-aluminum tube-and-fin coil with Omniguard corrosion protection and lanced fins for maximum heat transfer
• Variable speed condenser fan motor and swept wing blade for quiet, efficient airflow
• Full metal louvered cabinet with baked polyester paint over galvanized steel for long-term durability
• Ships factory charged for 15 feet of line set; 45-degree offset gauge ports for quick service access

Compatibility

Designed to operate as part of a fully communicating split system or with a standard 24-volt thermostat and non-communicating equipment. Comfort Sync enabled for communicating system configurations. Consult system-specific engineering data for approved air handler and coil combinations.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer guidelines. Disconnect and lock out all power to the system before handling refrigerant circuits, electrical connections, or pressure switches. Refrigerant handling requires EPA Section 608 certification. Verify line set length and refrigerant charge per the installation manual, as the unit is pre-charged for a 15-foot line set and may require adjustment for longer runs.

Technical Specifications

• Cooling Capacity: 24,000 BTU/h
• Heating Capacity: 22,400 BTU/h
• Nominal Tonnage: 2 tons
• SEER: 22
• Refrigerant: R-410A
• Operating Temperature Range: -15 degrees F to 125 degrees F
• Depth: 36.88 inches
• Height: 38.25 inches
• Width: 38.88 inches
• Warranty: 5-year limited; 10-year limited extended available on all parts and compressor

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 1.471009
