Allied Air 1.461030 Heat Pump Outdoor Unit 5 Ton 18 SEER2

Product Description

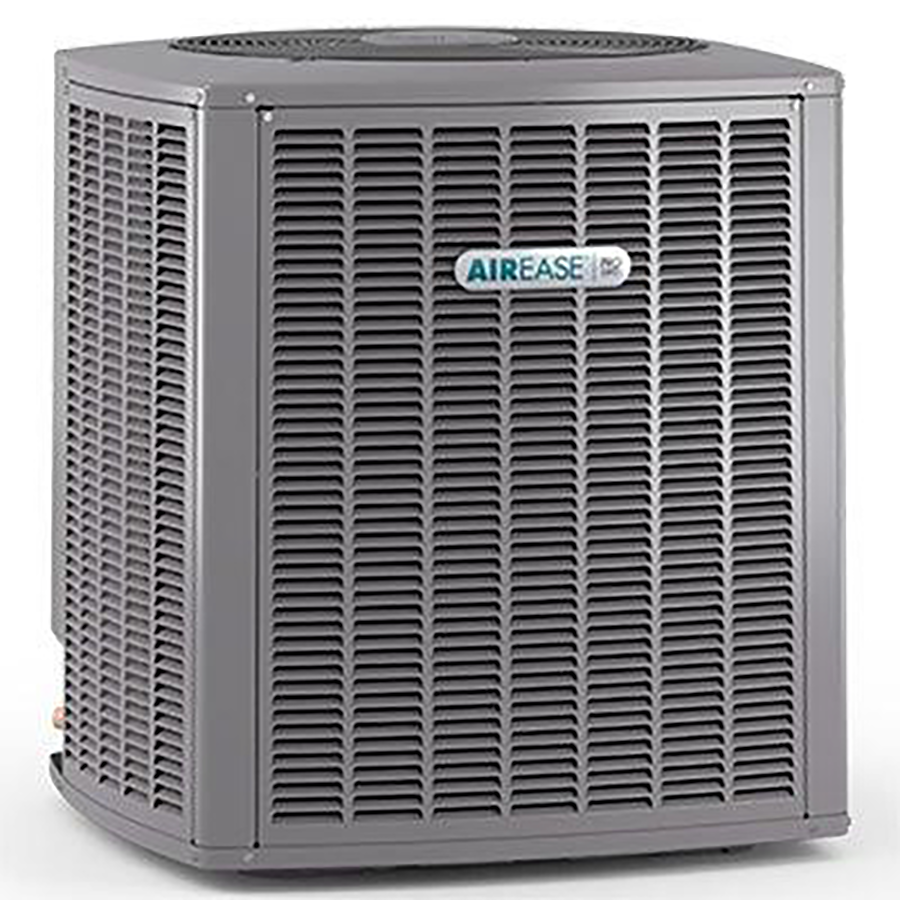

The ALLIED AIR 1.461030 is a 5-ton, R-410A heat pump outdoor unit designed for residential split-system applications requiring variable-capacity performance. The inverter-driven compressor operates across a continuous speed range rather than cycling on and off, delivering up to 60,000 BTU/h cooling and 57,500 BTU/h heating at a rated 18 SEER2. Variable-speed operation reduces sound levels, maintains steadier indoor temperatures, and improves latent heat removal compared to single-stage equipment. The unit ships with full metal louvered cabinet construction, an all-aluminum tube-and-fin coil with Omniguard corrosion protection, and corner-mounted controls sized for field serviceability. Licensed HVAC technicians handling EPA Section 608-certified refrigerant work are the intended installers.

The 1.461030 is engineered for installation in split-system heat pump configurations where communicating or standard 24-volt thermostat control is required. The unit supports fully communicating system wiring as well as conventional non-communicating setups, giving contractors flexibility when matching indoor equipment. In 24-volt applications, the unit offers five total operating modes: three in cooling and two in heating, allowing fine-tuning of capacity to match the load. The variable-speed condenser fan motor and swept-wing fan blade contribute to reduced acoustic output during all operating modes. Lanced fin coil geometry maximizes heat transfer surface area across the refrigerant circuit.

Key Features

• Inverter-driven compressor provides true variable-capacity operation in both heating and cooling modes
• Rated 60,000 BTU/h cooling and 57,500 BTU/h heating at 5 nominal tons
• 18 SEER2 efficiency rating with inverter-driven variable speed compressor
• Compatible with fully communicating systems or standard 24-volt non-communicating thermostats
• All-aluminum tube-and-fin coil with Omniguard corrosion protection for extended coil service life
• Full metal louvered cabinet with individually removable panels for coil access and cleaning
• 45-degree offset gauge ports and corner-mounted controls designed for fast field service

Compatibility

Designed as an OEM-style replacement or new-installation outdoor unit for residential R-410A split-system heat pump configurations supporting both communicating and standard 24-volt thermostat control.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 refrigerant handling certification. Disconnect and lock out all electrical power to the system before making any wiring or refrigerant connections. Follow local mechanical and electrical codes, including NEC requirements for disconnect sizing and wire gauge, and the manufacturer installation instructions for refrigerant line sizing and system evacuation. Do not operate the unit without confirming proper refrigerant charge, as the inverter drive is sensitive to system pressures outside design operating range.

Technical Specifications

• Nominal Capacity: 5 tons
• Cooling Capacity: 60,000 BTU/h
• Heating Capacity: 57,500 BTU/h
• SEER2 Rating: 18
• Refrigerant: R-410A
• Compressor Type: Inverter-driven variable speed
• Height: 43.75 inches
• Width: 29.38 inches
• Depth: 31.25 inches

Standard Information

• Brand: ALLIED AIR
• Manufacturer Part Number: 1.461030
