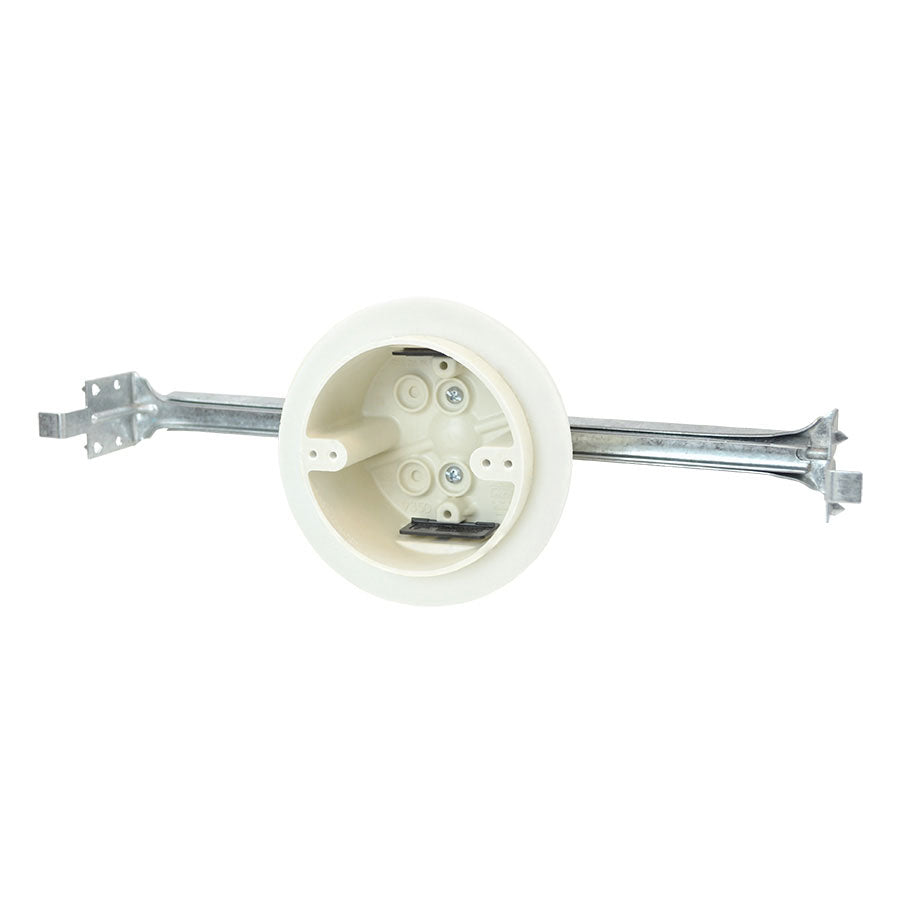

ALLIED 9350-BHKV - 4 Round Fixture Support Box

Product Description

The ALLIED 9350-BHKV is a four-inch diameter round fixture support box suitable for new work installations. This model is made from fiberglass reinforced polyester, ensuring durability and resistance to distortion in high temperatures while being shatter-resistant at low temperatures.

• Includes adjustable bar hanger for joists that are sixteen to twenty-four inches on center.
• Features factory-installed Speed K Clamps for secure nonmetallic cable installation.
• Equipped with an air-sealed flange for better energy efficiency.

Product Highlights

Designed for ease of installation and energy efficiency, the ALLIED 9350-BHKV supports up to fifty pounds with its sturdy structure.

Product Information

Standard Information

• Material: Fiberglass reinforced polyester
• Fixture Rating: 50 lbs

Technical Specifications

• Carton Quantity: 18
• Mounting Description: Adjustable bar hanger - 16 to 24 on center joist application
• Box Type: Ceiling - Fixture
• Volume: 22.5 cu. in.
• Width: 4 in
• Depth: 2-7/16 in
• Standards: ANSI / UL 514C: File No. E30594
• Fire Classification: ANSI / UL 263: File No. CEYY.R9379
