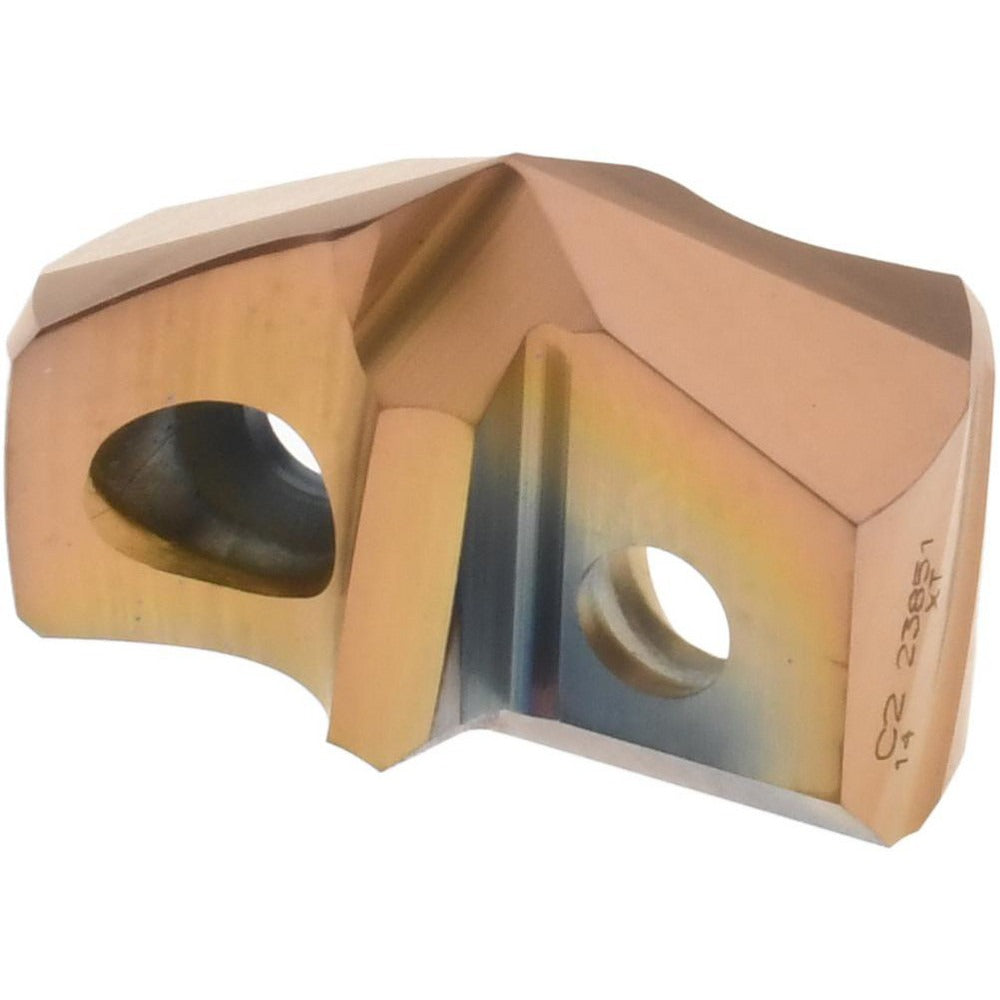

Allied 7C214P-14 Spade Drill Insert 14mm 140deg Carbide

Product Description

The ALLIED MACHINE AND ENGINEERING 7C214P-14 is a carbide spade drill insert designed for high-performance hole-making in demanding materials. Built to Seat Size 14 with a 14.00 mm cutting diameter and a 140-degree point angle, this insert uses an AM300 PVD coating applied over a C2 (K20) carbide grade substrate. It belongs to the GEN3SYS XT series, a platform engineered for aggressive feed rates and extended tool life in production drilling environments. Machinists and tooling technicians working in CNC machining centers, drill presses, and turret lathes will find this insert suited to applications where consistent geometry and coating durability are critical to cycle time and tool life.

This insert is intended for use in metalworking applications where the workpiece material presents elevated cutting demands. Primary workpiece materials include stainless steel, cast iron, non-ferrous metals, superalloys, and titanium, corresponding to ISO material codes M, K, N, and S. The AM300 PVD coating provides thermal resistance and wear protection particularly relevant when drilling stainless steel and superalloy components. It is a metric-system insert and is sized for direct installation into compatible GEN3SYS XT spade drill bodies at Seat Size 14.

Key Features

• 14.00 mm cutting diameter with 140-degree point angle for reduced thrust and improved chip formation
• C2 (K20) carbide grade substrate rated for hard and abrasive workpiece materials
• AM300 PVD coating classification for extended wear resistance across stainless steel, cast iron, and titanium
• GEN3SYS XT series platform designed for high feed-rate production drilling
• Rated for ISO material groups M, K, N, and S covering a broad range of metalworking applications
• Metric system insert, Seat Size 14, for direct body compatibility

Compatibility

Designed for use with ALLIED MACHINE AND ENGINEERING GEN3SYS XT spade drill bodies at Seat Size 14. Specific body compatibility should be confirmed against the GEN3SYS XT body selection chart prior to installation.

Installation Notes

Installation of spade drill inserts should be performed by a qualified machinist or tooling technician with the machine fully powered down and the spindle locked. Use the appropriate insert screw and torque driver specified for the GEN3SYS XT body to seat the insert securely without over-torquing the retention fastener. Inspect the insert seat for debris or damage before seating a new insert. Follow the tool manufacturer's recommended speeds and feeds for the specific workpiece material to avoid premature edge failure.
