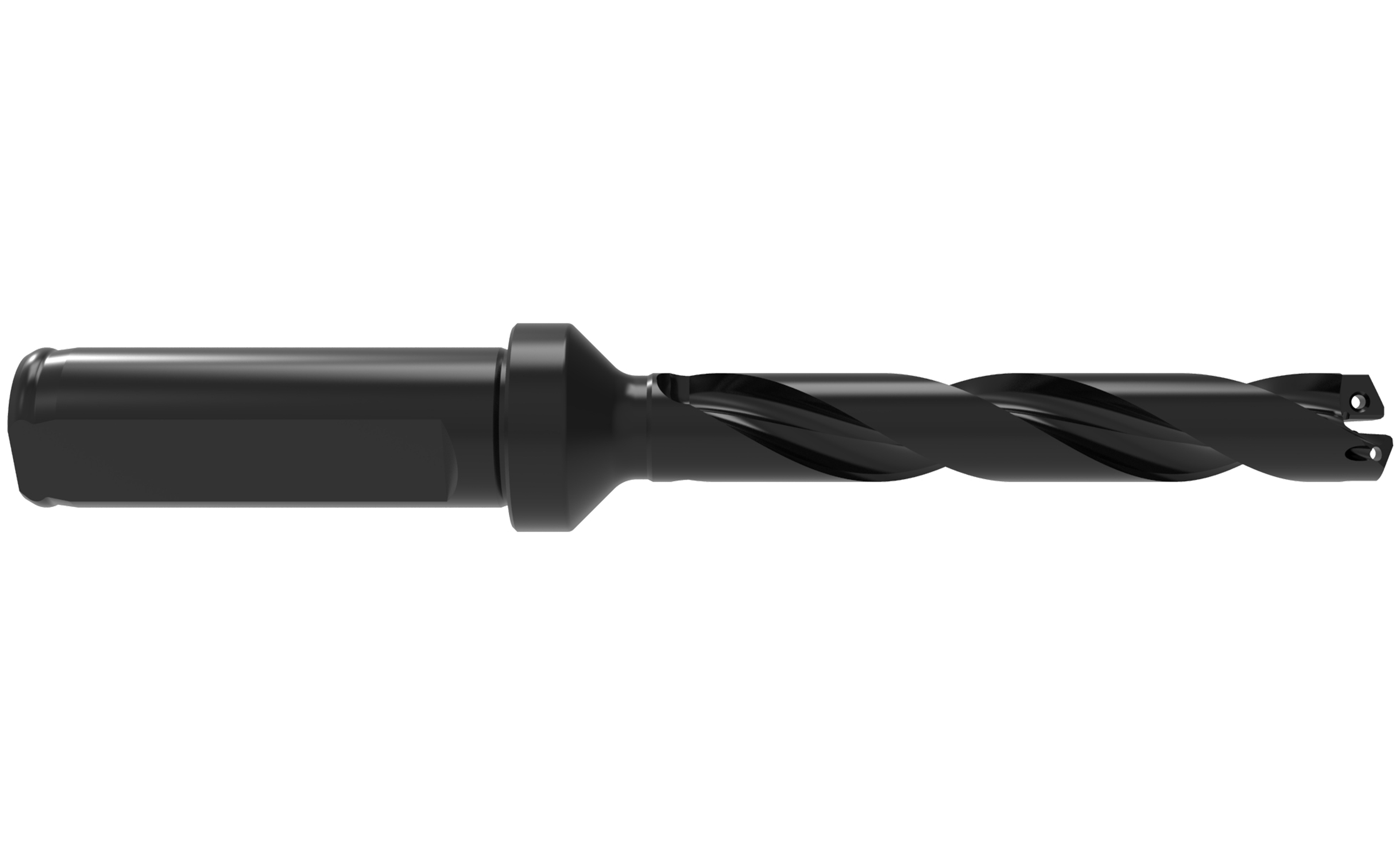

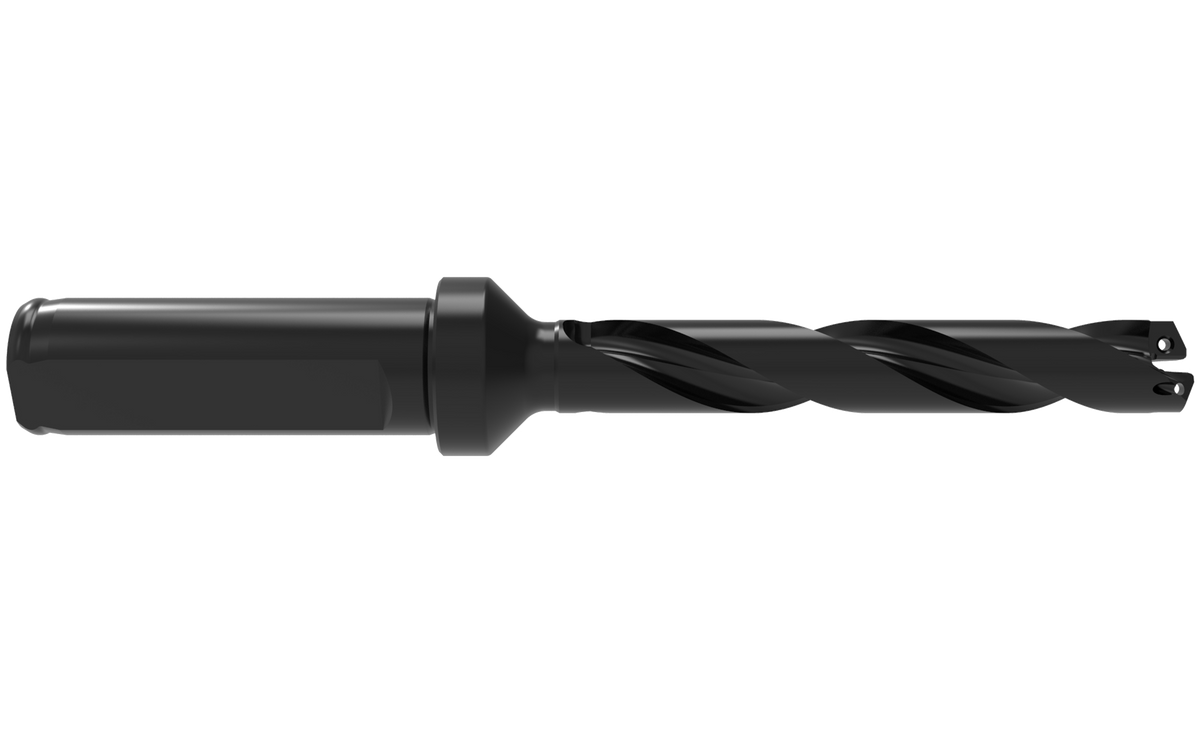

Allied 60512H-075F (D)ALLIED GEN3SYS #12 HC/FL 5XD HOLDER W/FLAT

Product Description

The Allied 60512H-075F is a high-performance drilling holder designed for efficiency in metalworking applications. This holder is part of the GEN3SYS series and allows for precise drilling with replaceable heads. It features a drilling diameter range of zero point four seven two four to zero point five one one seven inches. The overall length is five point six seven one nine inches, ensuring compatibility with various drilling tasks.

• High precision drilling holder
• Drilling depth of two point six four zero six inches
• Shank diameter of zero point seven five zero inches

Product Highlights

This holder is ideal for use in industrial settings where precision and durability are essential. The design allows for quick head replacement to minimize downtime.

Product Information

Standard Information

• Brand: Allied
• Part Number: 60512H-075F

Technical Specifications

• Drilling Diameter Range: 0.4724 - 0.5117 inches (12.000 - 12.990 mm)
• Drilling Depth: 2.6406 inches (2 9/16)
• Shank Diameter: 0.7500 inches (3/4) (19.050 mm)
• Shank Length: 2.0313 inches (2 1/32)
• Pocket Size: 12
• Overall Length: 5.6719 inches (5 43/64)
