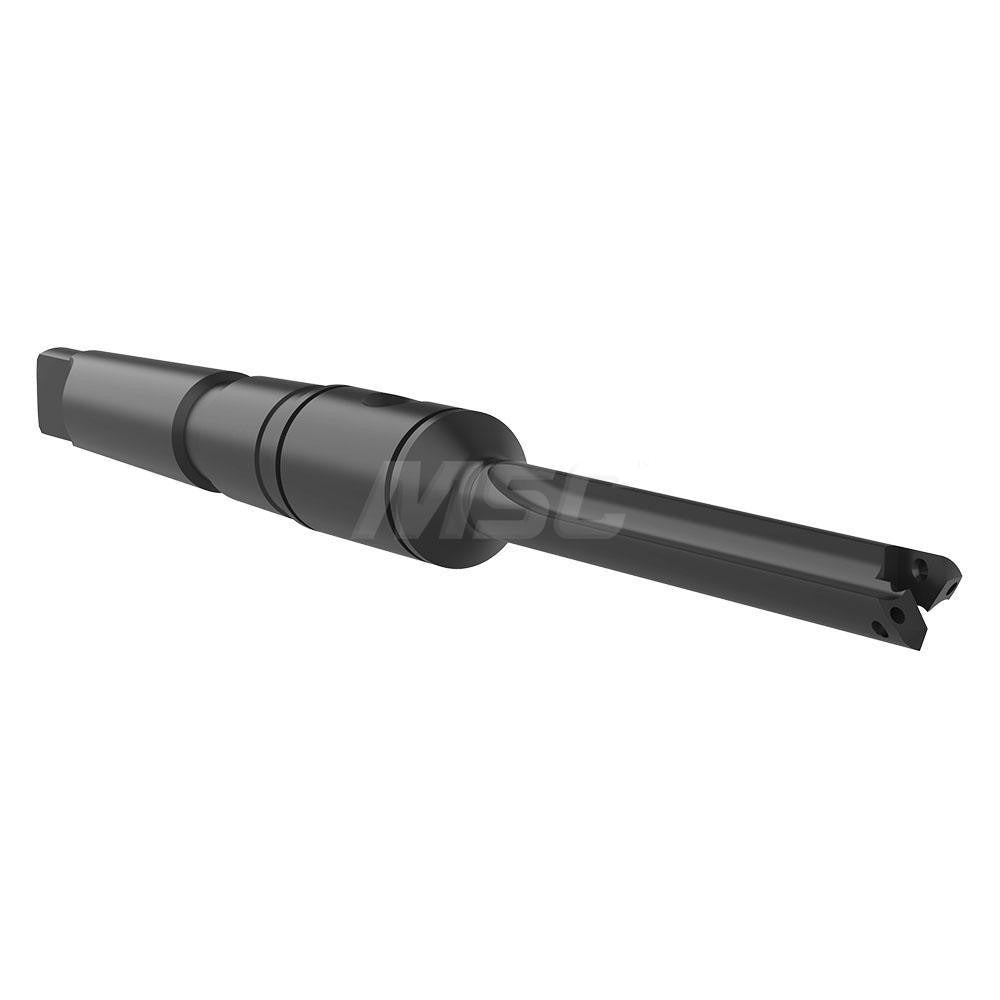

Allied 240Y0S-002I Indexable Spade Drill 3/8-27/64 in Taper Shank

Product Description

The ALLIED MACHINE AND ENGINEERING 240Y0S-002I is an indexable spade drill designed for general-purpose drilling operations in a wide range of workpiece materials. It accepts spade drill inserts and uses a straight flute geometry paired with a No. 2 Morse taper shank for rigid, concentric seating in compatible taper-shank toolholders and spindles. The drill supports through-coolant delivery via two radial coolant entry ports with 1/16-inch NPT threads, keeping cutting edges cool and flushing chips during deep-hole operations. This tool is installed and operated by machinists and tool-and-die professionals on manual or CNC drilling equipment.

This indexable spade drill is suited for production and job-shop environments where a single body accepts interchangeable spade inserts across a diameter range of 3/8 to 27/64 inches with a maximum drilling depth of 2-3/8 inches. The Series T-A Y design is a general-purpose configuration appropriate for machining steel, cast iron, aluminum, non-ferrous metals, and high-temperature alloys, consistent with workpiece material codes H, K, M, N, P, and S.

Key Features

• Diameter range: 3/8 to 27/64 inches, accommodating multiple insert sizes in one body
• Maximum drill depth of 2-3/8 inches with a straight flute for efficient chip evacuation
• No. 2 Morse taper shank (0.700-inch shank diameter) for secure, concentric machine spindle engagement
• Through-coolant capable with two radial entry ports threaded 1/16-inch NPT
• Compatible with 2T-2SR rotary coolant adapter for pressurized coolant delivery
• General-purpose Series T-A Y designation covering universal workpiece material range

Compatibility

Designed for use with T-A Y Series spade drill inserts. Compatible with the 2T-2SR rotary coolant adapter. The No. 2 Morse taper shank seats in any machine spindle or toolholder accepting a 2MT taper. Workpiece material compatibility codes: H, K, M, N, P, and S.

Installation Notes

Installation should be performed by a qualified machinist. Power down and lock out the machine spindle before seating or removing the taper shank. Clean the taper bore and shank surfaces of chips and oil before insertion to ensure full contact and concentricity. Follow the machine tool manufacturer's recommended RPM and feed rate ranges for the workpiece material and insert grade in use.
