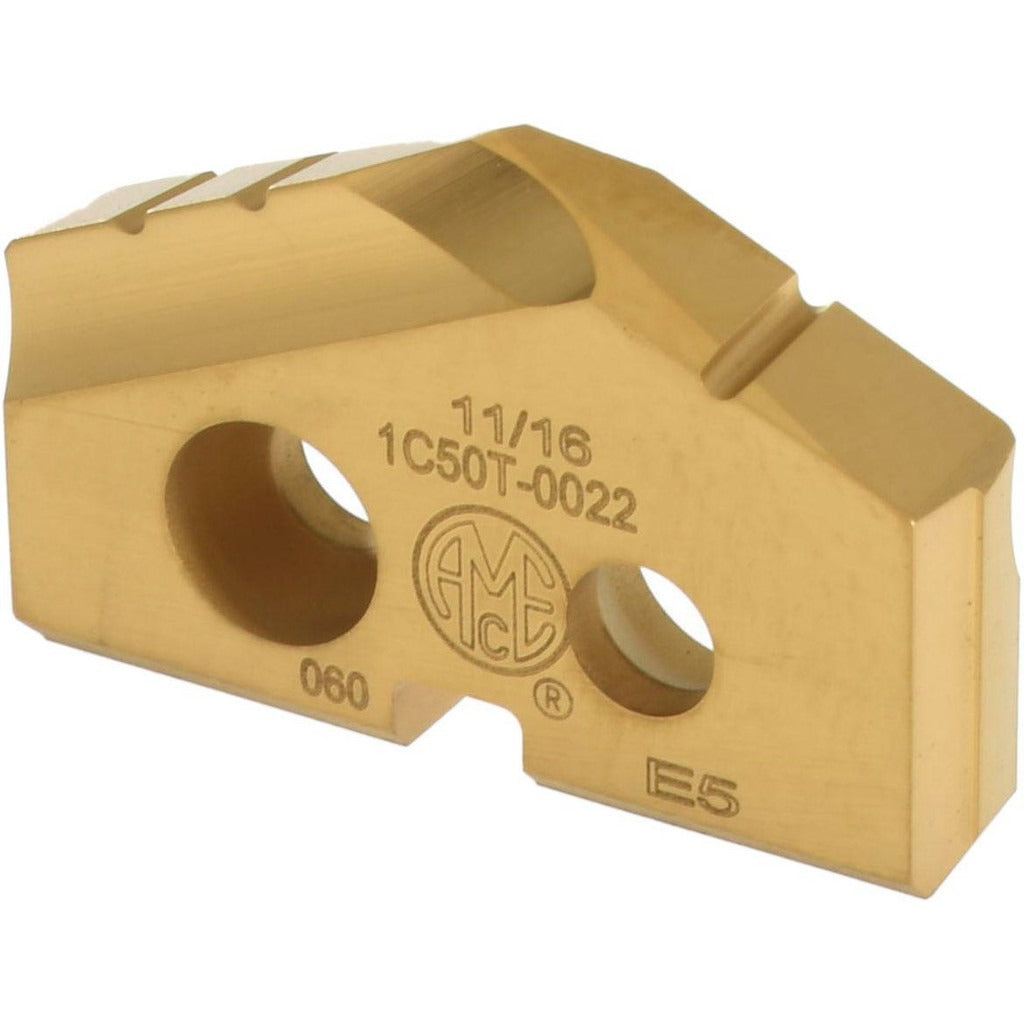

Allied 1C50T-0022 Spade Drill Insert 11/16 in Carbide Tin

Product Description

The ALLIED MACHINE AND ENGINEERING 1C50T-0022 is a carbide spade drill insert designed for use in T-A series spade drill holders. It features an 11/16-inch diameter cutting edge and a 132-degree point angle, making it suited for drilling operations in steel and hard materials. The insert is manufactured to Manufacturer Grade C5 (P40) carbide and carries a TiN (titanium nitride) PVD coating that extends cutting life in ferrous applications. At 0.125 inches thickness and a Seat Size 0 designation, this insert fits the corresponding T-A holder seat without modification. Installation is performed by qualified machinists or tool room technicians working with CNC or manual drill press setups.

This insert is intended for industrial metal-cutting applications, primarily drilling steel and hard materials in production or job-shop environments. The T-A series system is a modular spade drill platform where the insert indexes into a reusable holder, reducing tooling cost per hole. Typical applications include through-hole and blind-hole drilling in structural steel, alloy steel, and similarly hard ferrous workpieces. The 132-degree point geometry supports good chip formation and reduced thrust in these material grades. This insert is sold individually.

Key Features

• 11/16-inch diameter cutting edge for precise hole sizing in ferrous materials
• 132-degree point angle optimized for steel and hard material drilling
• C5 (P40) carbide grade provides hardness and wear resistance in interrupted and continuous cuts
• TiN PVD coating improves surface hardness and reduces built-up edge in steel drilling
• Seat Size 0 designation ensures direct fit into compatible T-A series holders
• 0.125-inch insert thickness maintains rigidity at this diameter range

Compatibility

Designed for use with T-A series spade drill holders accepting a Seat Size 0 insert. Primary workpiece material compatibility includes steel (Material Grade P) and hard materials (Material Grade H) per ISO material classification.

Installation Notes

Insert replacement should be performed by a qualified machinist or tool room technician with the machine powered down and the spindle fully stopped before handling. Secure the insert in the holder according to the holder manufacturer's torque and clamping procedures using appropriate insert-mounting hardware. Inspect the holder seat for damage or debris before seating the new insert, as a compromised seat will affect hole quality and insert life. Follow applicable shop safety procedures and machine-specific lockout/tagout protocols during all tooling changes.
