Allied 10424-0110 Spade Drill Insert 1-5/16 in Seat B 180pt

Product Description

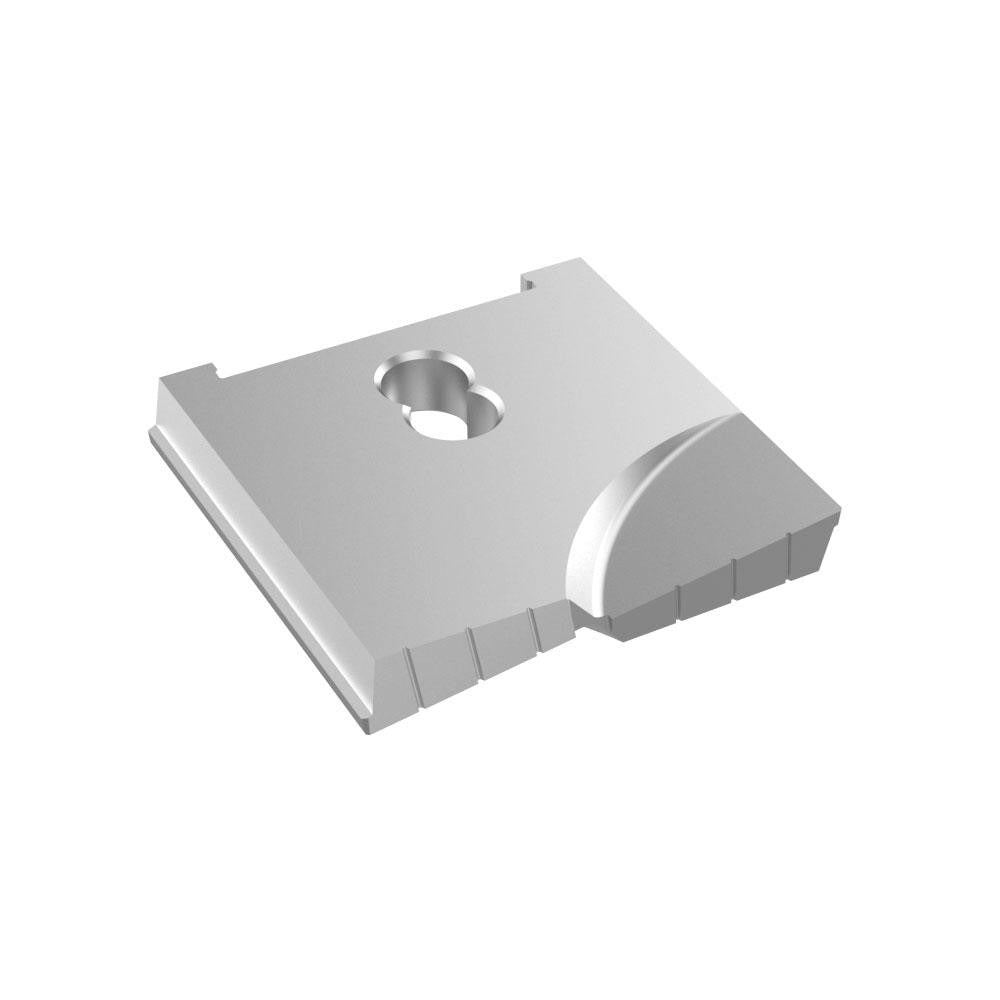

The ALLIED MACHINE AND ENGINEERING 10424-0110 is a spade drill insert designed for high-performance drilling in metal fabrication and machining applications. Manufactured from CPM-M4 powdered metal, this insert delivers consistent cutting performance in demanding conditions. It features a 180-degree point angle for flat-bottomed entry and reduced thrust, a 1-5/16 inch cutting diameter, and an uncoated finish suited to applications where coating is not required or where re-grinding is anticipated. Licensed machinists and tooling specialists install this insert into compatible spade drill holders as part of indexable tooling systems.

This insert is intended for use in Seat Size B spade drill holders and is suited for drilling operations in steel, cast iron, and non-ferrous metals. It performs well in production environments requiring precise hole sizing without the overhead of solid drill regrinding. Typical applications include through-hole and blind-hole drilling on CNC machining centers, lathes, and drill presses where indexable tooling is preferred for cycle-time efficiency and consistent diameter repeatability.

Key Features

• 1-5/16 inch cutting diameter for precise hole sizing
• 180-degree point angle reduces thrust and supports flat-bottomed entry
• CPM-M4 powdered metal construction for wear resistance in ferrous and non-ferrous materials
• Uncoated finish compatible with re-sharpening and reuse
• Seat Size B for indexed fit in compatible spade drill holder bodies
• Rated for use in steel (P), cast iron (K), and non-ferrous metals (N)

Compatibility

Designed for use with Seat Size B spade drill holders. Compatible primary workpiece materials include steel, cast iron, and non-ferrous metals.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Power down and de-energize all machine spindles before seating or removing the insert. Ensure the holder seat is clean and free of chips or debris before installation to prevent improper seating and runout. Follow the machine tool manufacturer torque specifications for the clamping screw to avoid insert movement or seat damage during operation.
