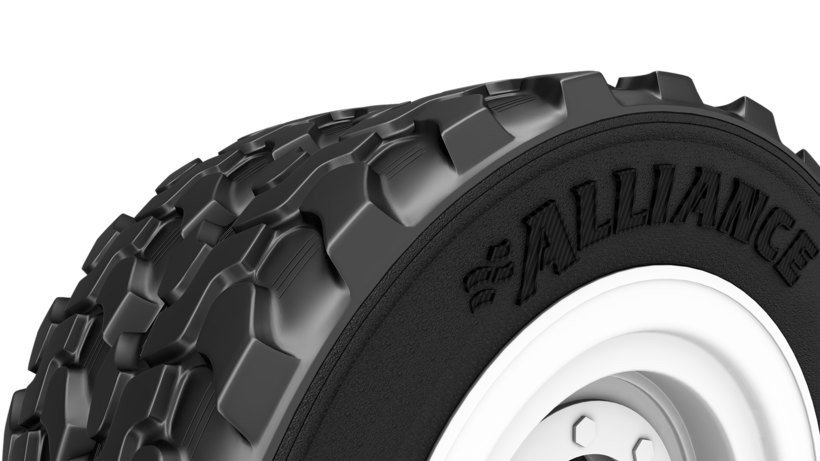

Alliance S-506 315/80R22.5 Radial Tire

Product Description

The Alliance S-506 is a radial tire built for earthmover and special vehicle needs. It features a strong steel carcass for stability and puncture resistance. This tire promotes long tread life and helps save on fuel. The design allows for close contact in dual configurations, which may remove the need for additional rubber rings to block stone entry.

• Radial construction offers extended tread life.
• Steel carcass ensures stability and protects against punctures.

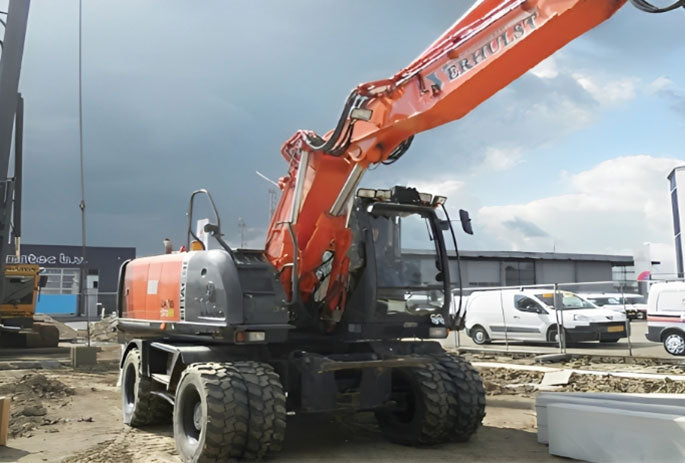

• Ideal for dual configurations on machines such as excavators.

Product Highlights

This tire is suitable for soft and hard surfaces, providing reliable performance in various conditions.

Product Information

Standard Information

• Brand: Alliance
• Manufacturer: Alliance

Technical Specifications

• MPN: S-506
• Tyre Size: 315/80R22.5
• Width: 315 mm
• Profile: 80
• Rim Diameter: 22.5 inches
• Construction: Radial
• Load Index: 154
• Speed Load Index: 154A8
• Usage: Earthmover tire
• Recommended Rim: 9 inches
• Air Pressure: 9 bar
• Diameter: 1100 mm
• Loaded Radius: 508 mm
• Rolling Circumference: 3366 mm
• Tread Depth: 25 mm
• Weight: 84.448 kg
