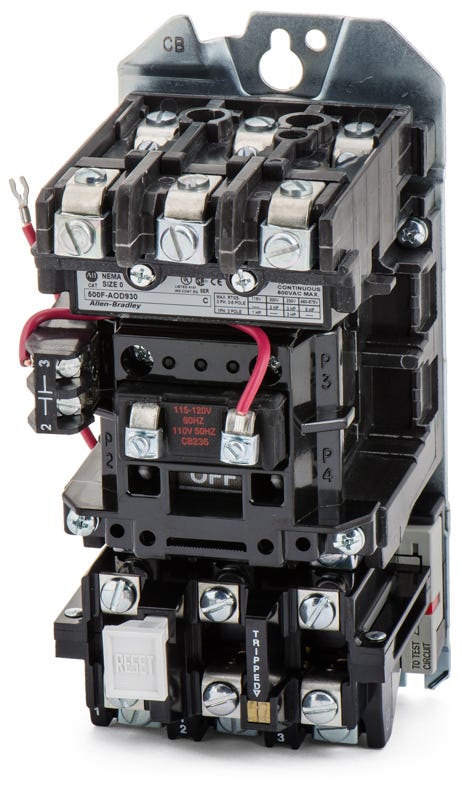

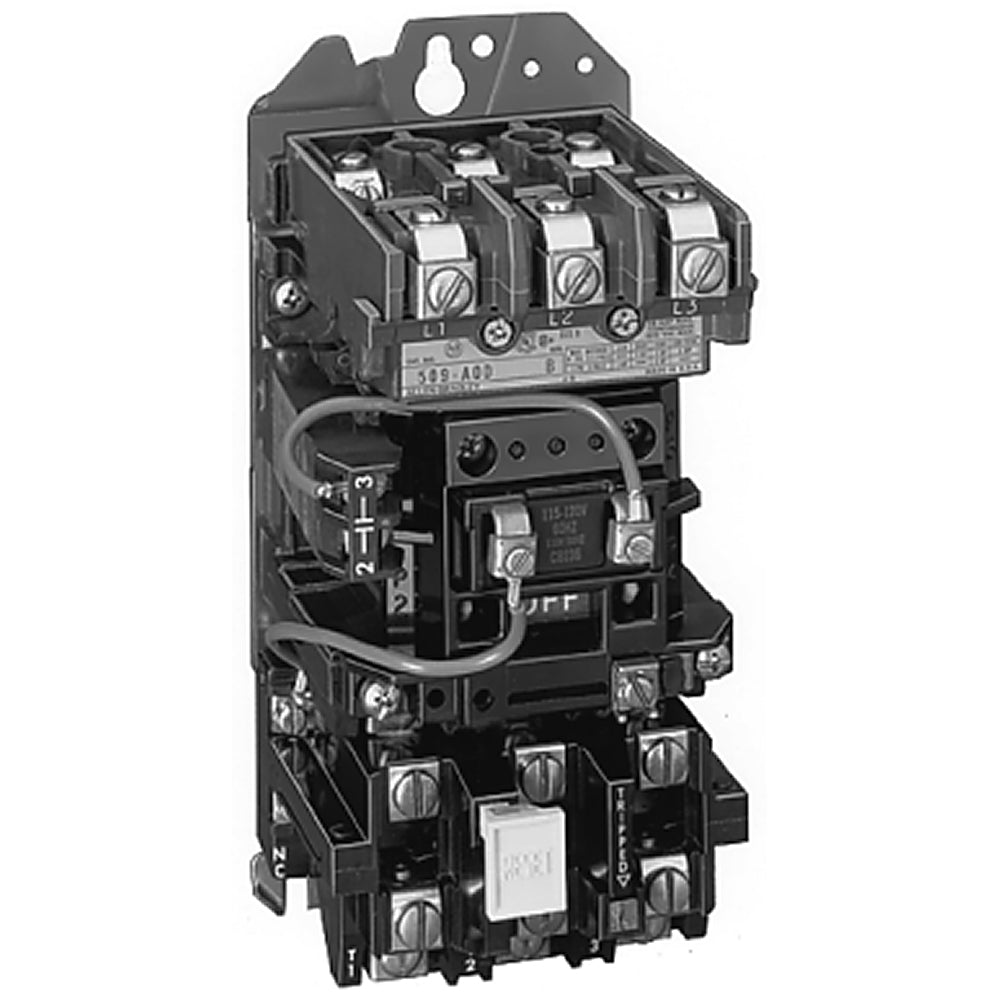

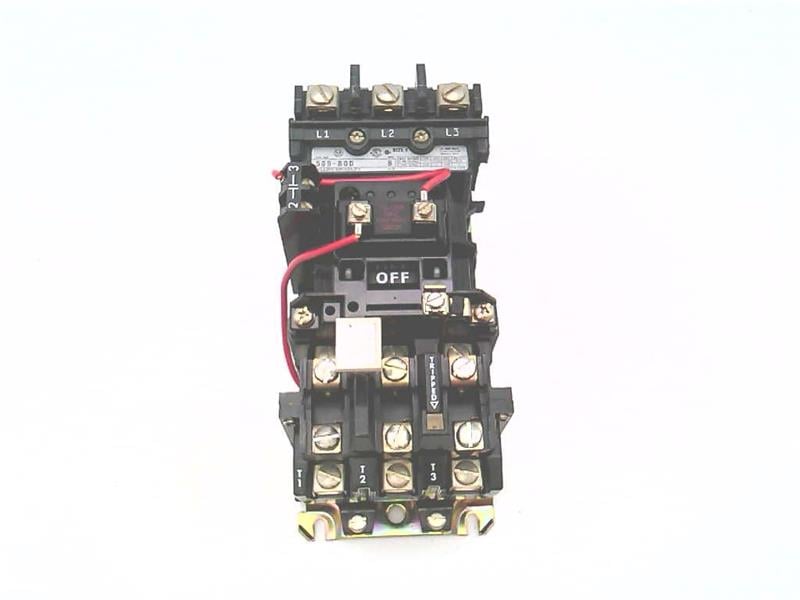

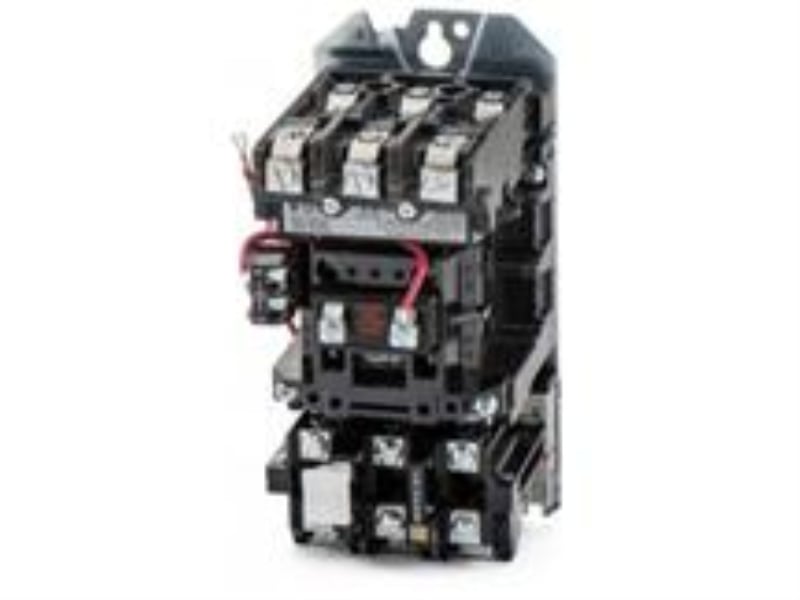

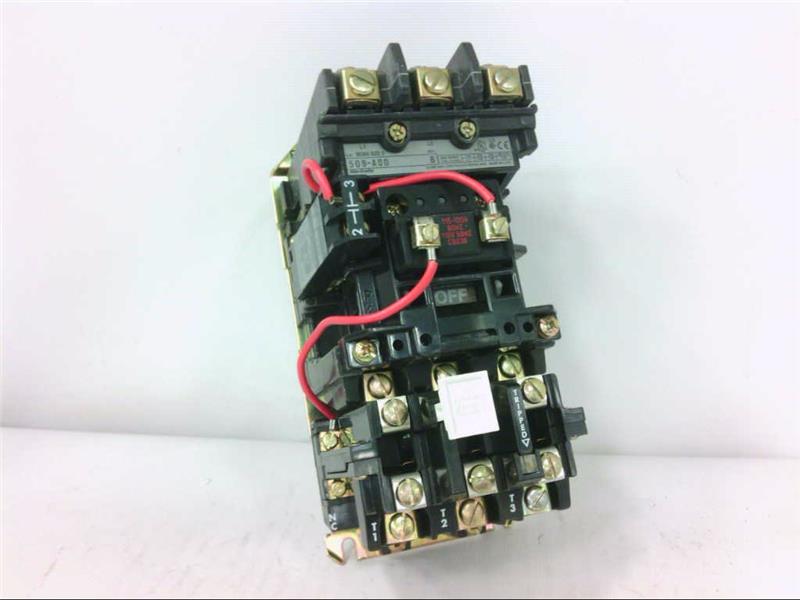

Allen-Bradley 509-AOD Non-Reversing Magnetic Starter 110/120V (NEMA Size 0)

Product Description

Allen-Bradley 509-AOD is a NEMA full-voltage non-reversing motor starter designed for open-type installation. The starter provides a 110/120 V 50/60 Hz control supply, a eutectic alloy temperature-compensated overload relay, and an 18 A continuous current rating for direct-online starting of three-phase motors. It is NEMA Size 0 with silver/silver-alloy contacts and is suitable for vertical or rail-mounted panel installations.

• Open enclosure, NEMA Size 0, continuous current rating 18 A for direct-online motor starting
• Control voltage 110/120 V (50/60 Hz) with eutectic alloy temperature-compensated overload relay and silver contacts
• Suitable for three-phase motors; vertical mounting and rail mountable; designed for panel mounting

Product Highlights

NEMA full-voltage non-reversing starter with 110/120 V control, eutectic alloy overload relay, and 18 A continuous rating

Product Information

Standard Information

• Brand: ALLEN-BRADLEY
• Manufacturer Part Number: 509-AOD
• Country of Origin: Mexico

Technical Specifications

• MPN: 509-AOD
• Brand: Allen-Bradley
• Manufacturer: Allen-Bradley
• Product Type: NEMA full voltage non-reversing starter
• Type: Non-Reversing Starter (Direct online / DOL)
• Enclosure Type: Open (no enclosure)
• NEMA Size: 0
• Control Voltage: 110/120 V, 50/60 Hz
• Continuous Current: 18 A
• Service Limit Current: 21 A
• Voltage Rating: 600 VAC
• Poles: 3
• Phase: 3
• Overload Relay: Eutectic alloy, temperature compensated
• Contact Material: Silver / Silver alloy (power and auxiliary)
• Mounting Type: Vertical; rail mountable
• Operating Temperature: 65 °C
• Altitude: 10000 ft before derating
• Mechanical Life: 1.0E7 operations
• Hp Rating: 5 Hp @ 575 V, 3-phase
• Circuit Inrush Peak, Max: 140 A
• Coil Operating Limits: 85...110%
• Heat Dissipation: 5.9 W
• Operating Volt-Amperes Burden: 29 VA (sealed, 60 Hz coils)
• Wire Size (power terminals): 14...10 AWG
• Type of Power Terminal: Saddle or wire clamp
• Type of Electrical Connection (auxiliary/control): Screw connection
• Required Torque (power terminal clamps): 20 in-lb
• Number of Auxiliary Contacts, Max: 8
• With Short-Circuit Release: True
• Suitable for Emergency Stop: True
• Standards/Certifications: CSA, CUL, KC, MARINE, UL
• Country of Origin: Mexico
• Weight: 3.00 lbs
