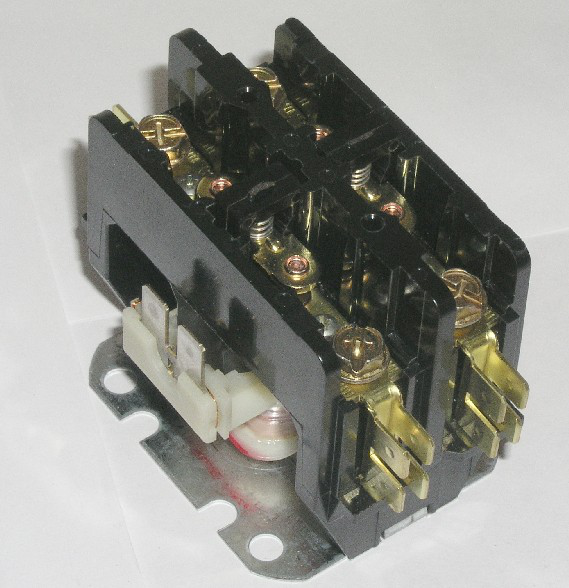

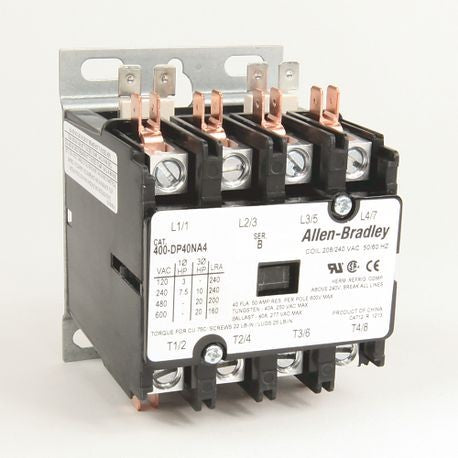

Allen-Bradley 400-DP40NA2 40 Amp Definite Purpose Contactor 208/240V 50/60Hz Replacement 400-DP40NA2

Product Description

The Allen-Bradley 400-DP40NA2 is a 40 Amp definite purpose contactor designed for use in motor control applications. It operates at voltage levels of zero to two hundred eight volts AC at fifty Hertz and zero to two hundred forty volts AC at sixty Hertz. This unit is suitable for lighting loads and has been UL tested to ensure reliability.

• UL tested for lighting loads
• Standard and high fault short circuit current rating (SCCR)
• Quick-connect terminals

Product Highlights

This contactor features snap-on auxiliary contacts and feed-through wiring for ease of installation. Double-break contacts offer enhanced performance in demanding applications.

Product Information

Standard Information

• Brand: Allen-Bradley
• Manufacturer: Rockwell Automation

Technical Specifications

• MPN: 400-DP40NA2
• Maximum Load Current: 40A
• Coil Voltage: 208/240V 50/60Hz
• Number of Poles: 2 Poles
• Contact Configuration: N.O.
• Line Voltage (V AC): 240/277/480/600
• Locked Rotor Current (A): 240/200/120
• Max. HP (120V) Single Phase: 5
• Max. HP (240V) Single Phase: 3
• UPC: 611320349962
