Allen-bradley 25B-D2P3N114 Powerflex 525 Ac Drive 1HP 480V

Product Description

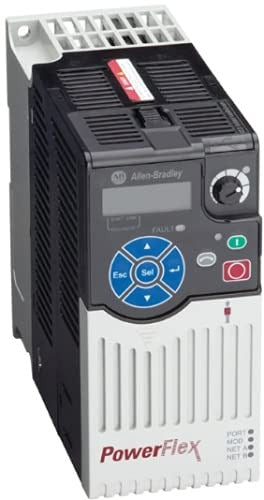

The ALLEN-BRADLEY 25B-D2P3N114 is a PowerFlex 525 AC variable frequency drive rated for 1 horsepower (HP) at 480 volts AC, 3-phase, 50/60 Hz input. It is a Frame A unit with a built-in EMC filter and a 2.3-amp output current rating. This drive is designed for motor speed control in commercial and industrial applications where precise control of AC induction motors is required. Licensed electricians and automation technicians install and commission this type of drive as part of motor control systems in pump, fan, conveyor, and general-purpose machine applications.

The 25B-D2P3N114 is suited for both normal duty and heavy duty service within its 1 HP rating. Its compact Frame A footprint makes it a practical choice for panel installations with limited space. The integral EMC filter reduces conducted electromagnetic interference, supporting compliance with applicable EMC standards without requiring an external filter accessory. This drive is commonly installed in light industrial, commercial HVAC, and process equipment where variable speed motor control is needed.

Key Features

• 1 HP output rating at 480 volts AC, 3-phase
• 2.3-amp output current capacity
• Built-in EMC filter eliminates need for external filter in most installations
• Frame A compact form factor for space-constrained panel builds
• Supports 50 Hz and 60 Hz input frequency for broad installation flexibility
• Rated for both normal duty and heavy duty motor load profiles

Compatibility

Designed for use with 3-phase AC induction motors rated at 1 HP or within the drive output capacity at 480 volts AC. Verify motor nameplate ratings against drive output specifications before installation.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and all applicable local codes. Disconnect and lock out all power to the panel before wiring the drive. Follow the manufacturer wiring diagrams for input power, motor output, and control terminals. Do not apply input power until all wiring connections have been verified and covers are in place.
