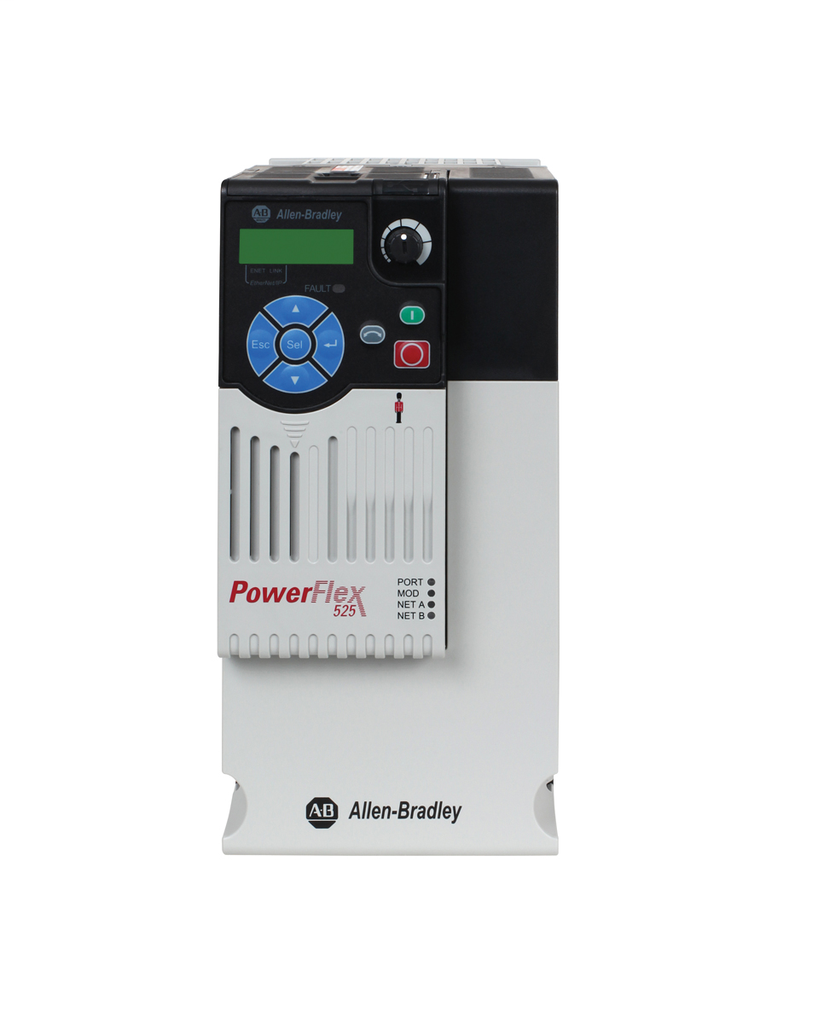

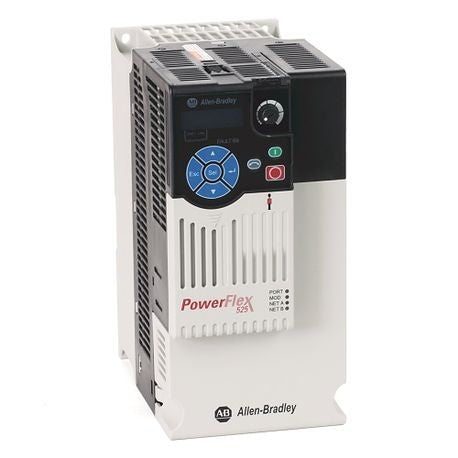

Allen-Bradley 25B-B024N104 PowerFlex 525 5.5 kW 7.5 Hp AC Drive

Product Description

The Allen-Bradley 25B-B024N104 is a PowerFlex 525 AC Drive with a power rating of 5.5 kW (7.5 Hp). It is designed for 240V AC input and can handle three-phase applications. This drive is ideal for various motor control solutions and is suitable for use in different environments.

• High efficiency with a power factor of 0.98
• Integrated EtherNet/IP for seamless network communication
• Includes built-in Safe Torque Off for enhanced safety

Product Highlights

This AC drive offers flexible control modes, including volts per hertz and sensorless vector control, making it versatile for many applications.

Product Information

Standard Information

• Manufacturer: Allen-Bradley
• Part #: 25BB024N104 AB

Technical Specifications

• Input Voltage Rating: 240V AC
• Output Current Rating: 24 A
• Frequency Rating: 50-60 Hz
• Enclosure Type: IP20, UL-NEMA Type Open
• Frame Size: Frame C
• Control: EtherNet IP-USB-RS485
• Display: LED Display
• Brake IGBT: Included
