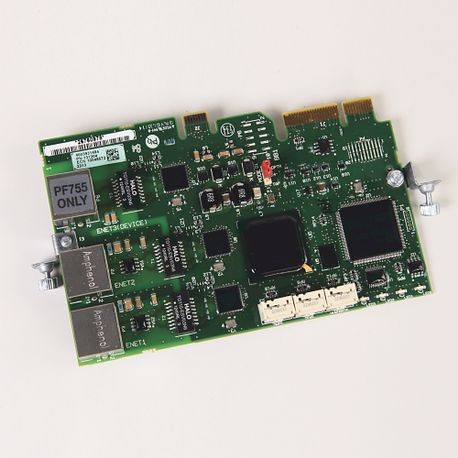

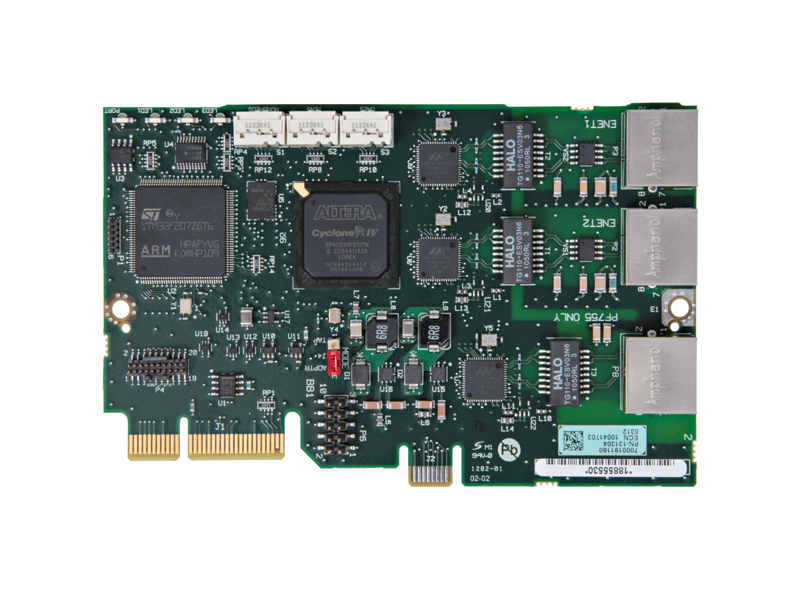

Allen-Bradley 20-750-ENETR 2-Port AC Drive Ethernet/IP Option Module

Product Description

The Allen-Bradley 20-750-ENETR is a 2-port EtherNet/IP option module designed for PowerFlex 750 series drives. This adapter facilitates communication between the drive and Ethernet networks, enabling efficient control and monitoring.

• Compatible with PowerFlex 753 and 755 drives.
• Operates on 14 VDC with a current draw of 250 mA.
• Mounts easily on the drive control pod.

Product Highlights

The module supports dual-port communication, ensuring robust connectivity for industrial applications.

Product Information

Standard Information

• Brand: Allen-Bradley
• Manufacturer: Rockwell Automation

Technical Specifications

• MPN: 20-750-ENETR
• Type: Adapter
• Voltage: 14 VDC
• Amperage: 250 mA at 14 VDC (Drive)
• Temperature Rating: -10 to 50 degrees C
• Number of Ports: 2
• Dimensions: 150 mm (Length), 26 mm (Width), 68 mm (Height)
• Standards: CCC, CE, CUL, KC, UL
• Applications: Use with PowerFlex 753 and 755 drives
