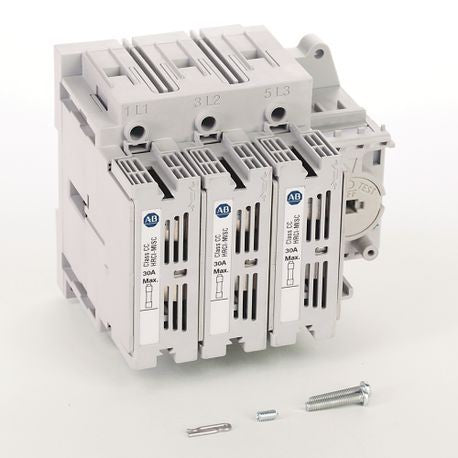

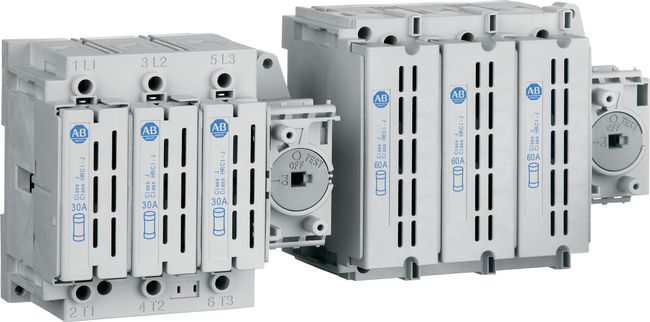

Allen-Bradley 194R-C30-1753 Disconnect Switch 600 Volt AC 30 AMP Class CC

Product Description

The Allen-Bradley 194R-C30-1753 is a rotary disconnect switch designed for a maximum voltage of six hundred volts alternating current. This switch is rated for continuous current of thirty amps and is equipped with a fusible Class CC mechanism. The external rotary handle allows for easy operation and application in NEMA rated environments.

• Provides touch-safe design
• Includes OSHA padlocking features
• Suitable for use in industrial applications

Product Highlights

This model is ideal for controlling power and protecting electrical circuits. It features three poles for comprehensive protection and is built to meet rigorous safety standards.

Product Information

Standard Information

• Type: Rotary Disconnect Switch
• Operator: Rotary Handle/Shaft

Technical Specifications

• Fusible: Yes, Class CC
• Poles: 3
• Voltage: 600V AC
• Continuous Amps: 30A
• Fuse Clip Amps: 30A
• Mounting: Base
• Terminal Conductor Size: 12-14 AWG
• Manufacturer Series: 194R
