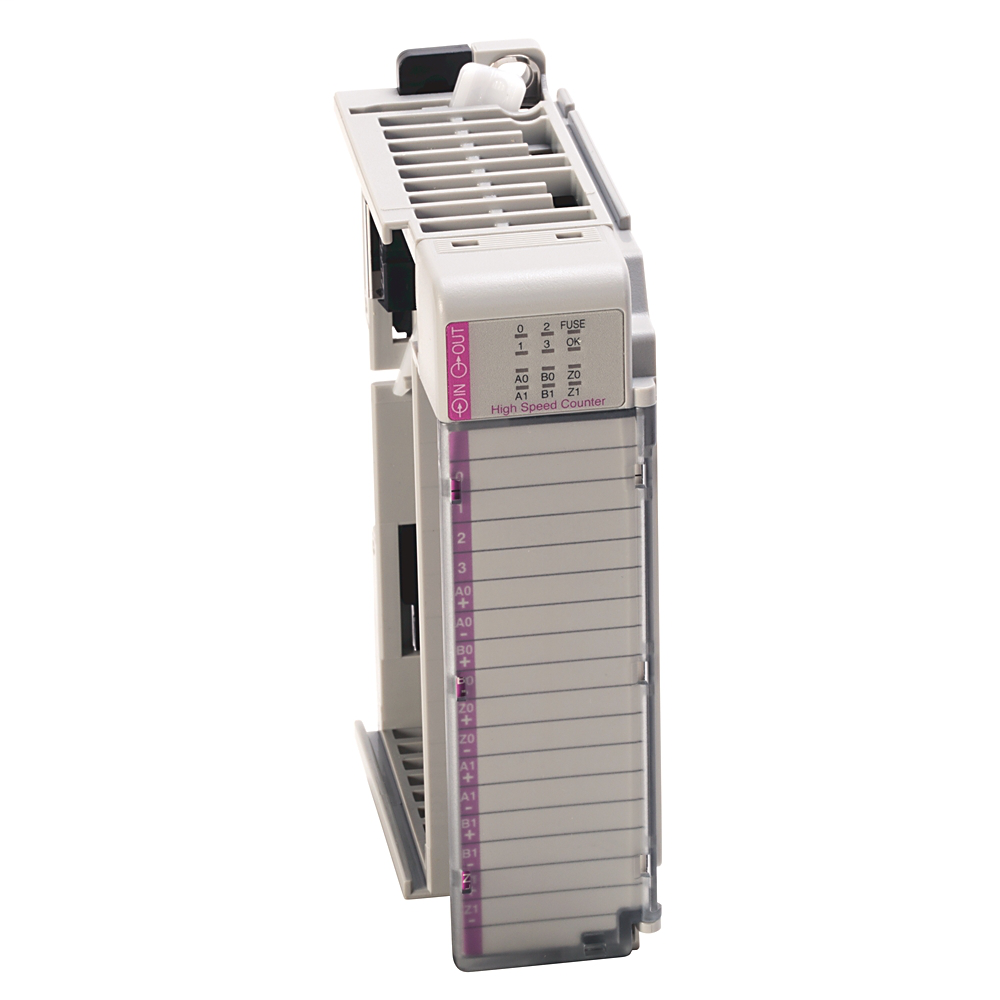

Allen-Bradley 1769-HSC Compactlogix High Speed Counter Module

Product Description

The Allen-Bradley 1769-HSC is a CompactLogix high-speed counter module designed for counting applications. It connects seamlessly to the Compact I/O platform and supports various input types, making it suitable for applications that require efficient monitoring of motion. Its robust features enhance control capabilities in industrial environments.

• Includes built-in RS-232 serial port for easy communication.
• Supports up to four channels of high-speed counting.
• Operates in temperatures ranging from 0 to 60 degrees Celsius.

Product Highlights

This module offers advanced features like optical isolation and direct connections to PowerFlex drives. It also facilitates smooth integrations with HMI options, ensuring versatility in usage.

Product Information

Standard Information

• Brand: Allen-Bradley
• Manufacturer: Rockwell Automation

Technical Specifications

• Depth: 3.43 inches
• Width: 1.38 inches
• Height: 4.65 inches
• Number of Channels: 4
• Voltage: 2.6-30 VDC Supply, 5 VDC Output
• Amperage: 15 mA Input, 0.425 Amp Output
• Mounting Type: DIN Rail, Panel Mount
• Operating Temperature: 0 to 60 degrees Celsius
