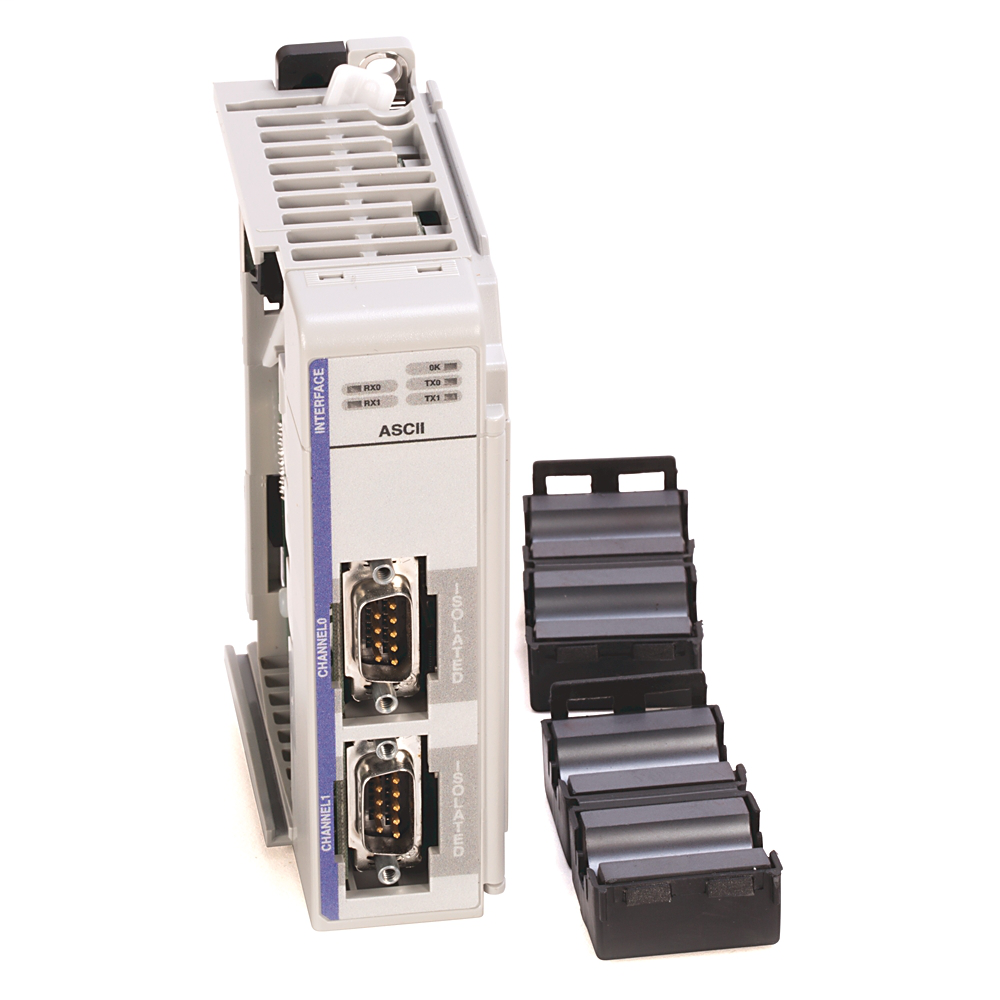

Allen-Bradley 1769-ASCII Compactlogix ASCII Interface Module

Product Description

The Allen-Bradley 1769-ASCII Compactlogix ASCII Interface Module provides seamless communication between devices in industrial systems.

• Includes on-board scaling for easy integration.
• Offers support for multiple connection types including RS-232, RS-485, and RS-422.
• Supports Integrated Motion over EtherNet/IP for enhanced scalability.

Product Highlights

This module offers versatile connectivity options for various automation tasks, making it suitable for small to mid-size applications.

Product Information

Standard Information

• Brand: Allen-Bradley
• Manufacturer: Rockwell Automation

Technical Specifications

• Type: Communication Module
• Number of Channels: 2
• Voltage: 3-25 VDC Supply
• Amperage: 0.425 Amp
• Dimensions: 3.43 in Depth, 1.38 in Width, 4.65 in Height
• Operating Temperature: 0 to 60 degrees C
• Mounting Type: DIN Rail, Panel Mount
• Special Features: 2 full duplex (RS-232, RS-422), 2 half duplex (RS-485)
• Display Type: Status LEDs
• Sub Brand: CompactLogix
