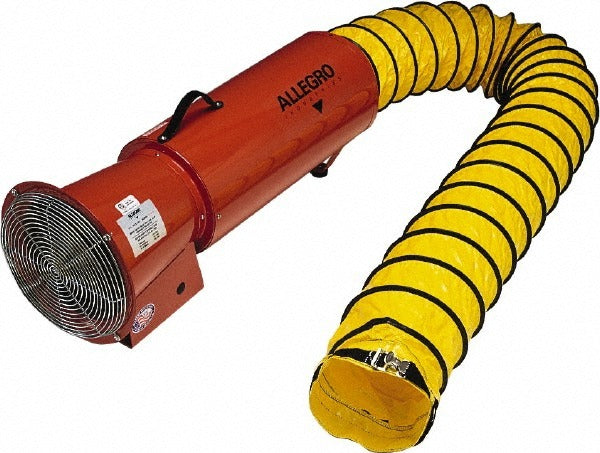

Allegro 9514-25 Ac Axial Blower Kit 1275 Cfm 0.33 Hp

Product Description

The ALLEGRO 9514-25 is an AC axial blower kit designed for ventilation in confined spaces, utility enclosures, and industrial work areas. It delivers 1,275 cubic feet per minute (CFM) of airflow through an 8-inch inlet and outlet using a 0.33 horsepower (HP) electric motor rated for up to 120 volts AC. The steel blower casing provides structural durability, while the included 25-foot vinyl/polyester duct allows flexible routing from the blower to the ventilation point. This kit is typically installed by safety professionals, industrial maintenance technicians, and confined space entry crews who need reliable forced-air ventilation.

This blower kit is suited for confined space ventilation, manhole work, tank entry, and similar applications requiring forced fresh-air supply or exhaust. The 25-foot duct length gives technicians working clearance from the blower motor to the work area. The axial fan design moves high air volumes at low static pressure, making it appropriate for straight duct runs into open or semi-open spaces. It operates on standard 120-volt AC power, which is available on most job sites via extension cord or portable generator.

Key Features

• 1,275 CFM airflow capacity for effective confined space ventilation
• 8-inch inlet and outlet for high-volume duct compatibility
• 0.33 HP AC electric motor rated up to 120 volts
• Steel blower casing for job-site durability
• Includes 25-foot vinyl/polyester duct for flexible placement
• Non-explosion-proof design — suitable for non-hazardous atmospheres

Compatibility

Designed as an OEM-style axial blower kit for confined space and industrial ventilation applications requiring an 8-inch duct connection and 120-volt AC power supply.

Installation Notes

Installation and operation of this blower kit should follow applicable OSHA confined space entry standards and site safety protocols. Position the blower on a stable, flat surface at the entry point and secure the duct before powering the unit on. Ensure the power source is a grounded 120-volt AC circuit capable of supporting motor startup current. Because this unit is not explosion-proof, it must not be used in atmospheres containing flammable gases, vapors, or combustible dust.
