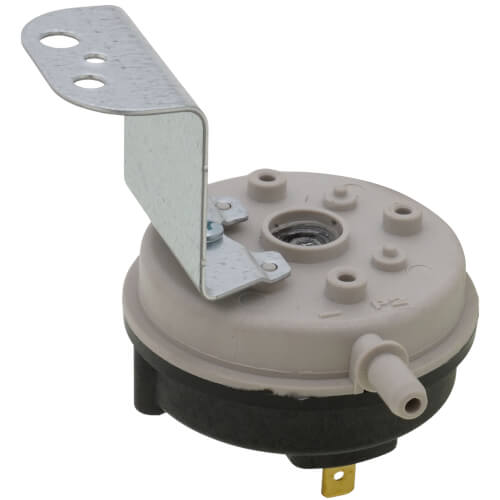

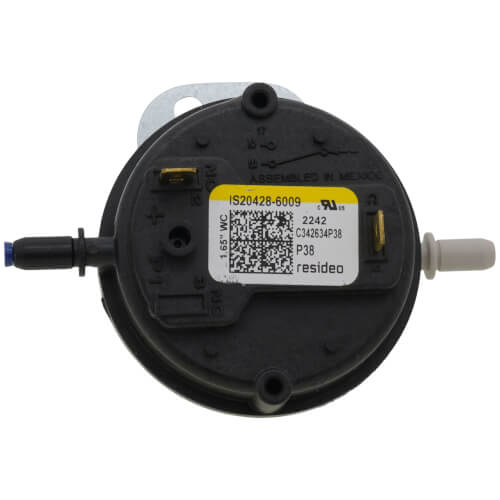

Trane SWT03254 Switch Pressure 28 Va Pilot Duty 24 Vac 125 Va Pilot Duty 120 Vac 1/10 Hp 3 Fla 18 Lra 24 Vac Open At -1.59 WC Close At -1.84 WC
Trane SWT03254 Switch Pressure 28 Va Pilot Duty 24 Vac 125 Va Pilot Duty 120 Vac 1/10 Hp 3 Fla 18 Lra 24 Vac Open At -1.59 WC Close At -1.84 WC
Trane SWT03254 Switch Pressure 28 Va Pilot Duty 24 Vac 125 Va Pilot Duty 120 Vac 1/10 Hp 3 Fla 18 Lra 24 Vac Open At -1.59 WC Close At -1.84 WC

Trane SWT03254 Switch Pressure 28 Va Pilot Duty 24 Vac 125 Va Pilot Duty 120 Vac 1/10 Hp 3 Fla 18 Lra 24 Vac Open At -1.59 WC Close At -1.84 WC

TRANE
Brand: TRANE
SKU: SWT03254
Availability: Out Of Stock
$76.72
$76.72
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Trane SWT03254 Pressure Switch is essential for managing pressure in industrial and HVAC applications. This pressure switch features a 28 Va pilot duty at 24 Vac and 125 Va pilot duty at 120 Vac. It also supports 1/10 Hp, 3 Fla, and 18 Lra at 24 Vac.

  • Reliable pressure control
  • Suitable for pumps, compressors, and fans
  • Open at -1.59 WC, close at -1.84 WC

Product Highlights

This Trane Pressure Switch SWT03254 is designed to manage pressure levels effectively in HVAC and industrial systems. It delivers precise control and ensures equipment safety under variable conditions.

Product Information

Standard Information

  • Brand: Trane
  • Manufacturer Part Number: SWT03254
  • Product Name: Switch; Pressure

Technical Specifications

  • Pilot Duty: 28 Va (24 Vac), 125 Va (120 Vac)
  • Horsepower: 1/10 Hp
  • Full Load Amps: 3 Fla (24 Vac)
  • Locked Rotor Amps: 18 Lra (24 Vac)
  • Opening Pressure: -1.59 WC
  • Closing Pressure: -1.84 WC
