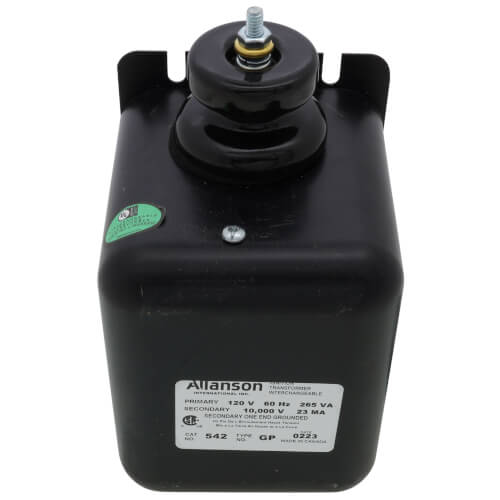

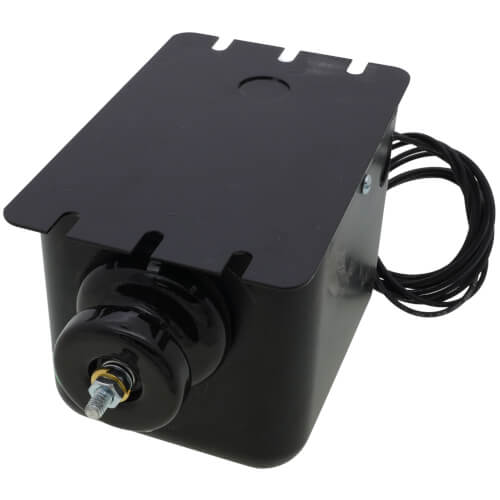

Allanson 542GP Ignition Transformer for Gordon Piatt Burner 120V

Product Description

The Allanson 542GP Ignition Transformer is a critical component designed for Gordon Piatt burners, operating at a primary voltage of 120V and secondary voltage of 10,000V. This industrial transformer meets both American and European standards for noise emission and offers superior EMI and RFI protection.

• Primary voltage: 120V
• Secondary voltage: 10,000V
• Designed for Gordon Piatt burners

Product Highlights

Designed with high-temperature wire to ensure cooler and quieter operation across all burner types. It is tailored to meet the specifications set by burner manufacturers and includes a single porcelain design for enhanced durability.

Product Information

Standard Information

• Part: 542
• Type: GP
• Burner: Gordon Piatt

Technical Specifications

• Primary Voltage: 120V
• Secondary Voltage: 10,000V
• mA: 23
• VA: 250
• Hertz: 60
• Ground: One End Ground
• Weight: 10.705 lbs
• Shipping Dimensions: 10.3 x 6.7 x 5.05 inches
