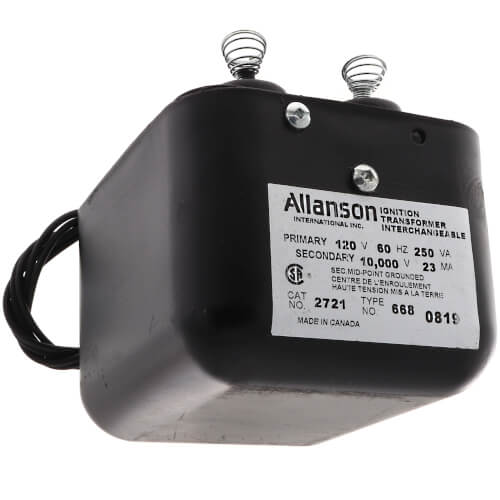

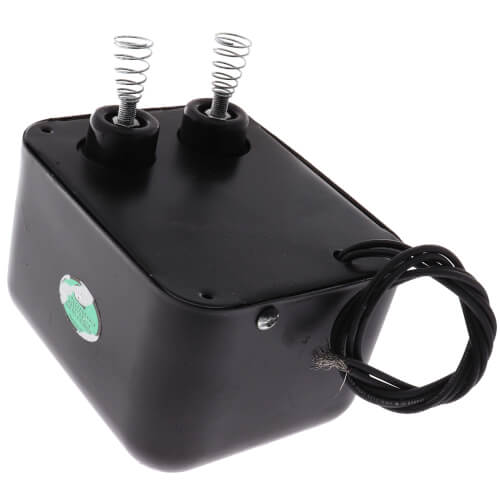

Allanson 2721-668 Oil Burner Ignition Transformer 120V

Product Description

The Allanson 2721-668 Oil Burner Ignition Transformer is designed to provide reliable ignition for oil burners, with a focus on efficiency and durability. This 120V transformer is compatible with Wayne oil burners and other similar models, ensuring a smooth operation.

• Designed to work with Beckett A, AF, and AFG oil burners.
• Features 4 mounting holes for secure installation.
• Delivers a secondary voltage of 10,000 volts for effective ignition.

Product Highlights

Constructed with high temperature wire and high density double porcelain bushings, the Allanson 2721-668 is UL listed and CSA certified, guaranteeing safety and quality. Its robust design is tailored specifically to meet burner manufacturer specifications, providing dependable power and performance.

Product Information

Standard Information

• Brand: Allanson
• Model Number: 2721-668

Technical Specifications

• Voltage: 120V
• Amperage: 23 mA
• Ignition Type: Spark
• Mounting Type: 4 mounting holes in plate
• Compatible Manufacturers: Wayne, Beckett
• Dimensions: 7.25 x 5.5 x 5.5 inches
• Weight: 7 pounds
