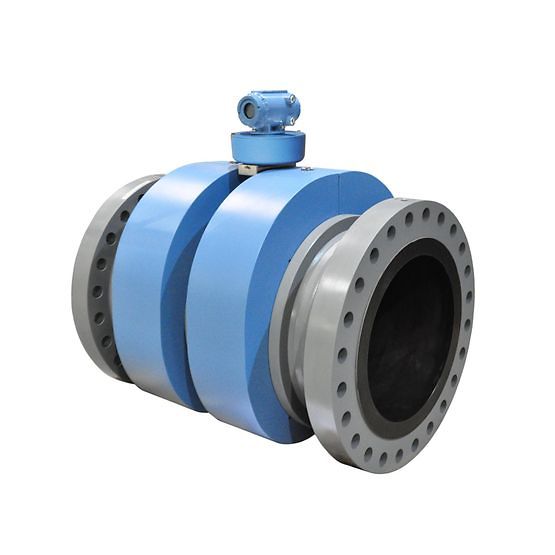

ALL-SOURCE 3418 Rosemount Eight-Path Gas Ultrasonic Flow Meter

Product Description

The Rosemount 3418 Eight-Path Gas Ultrasonic Flow Meter from ALL-SOURCE is engineered for high precision. This flow meter employs an advanced design that integrates two sets of four-path meters, effectively countering swirl and cross flow effects. Suitable for fiscal measurement applications, it features a low requirement for straight run, needing only five diameters. This meter achieves an accuracy of 0.1% over its entire flow calibration range, ensuring reliable readings.

• High accuracy at ±0.1% of reading.
• Requires only five diameters of straight run for installation.
• Supports a wide range of operating temperatures and pressures.

Product Highlights

The Rosemount 3418 is ideal for gas measurements in various applications, providing data reliability and performance.

Product Information

Standard Information

• Brand: ALL-SOURCE
• MPN: 3418

Technical Specifications

• Line Size: DN250 to DN1050 (10-in to 42-in) with British Gas orientation
• Fluid Type: Gas
• Accuracy: ±0.1% of reading
• Repeatability: ±0.05% of reading for 5 to 100 ft/s (1.5 to 30.5 m/s)
• Velocity: Rated up to 100 ft/s (30 m/s)
• Operating Temperature Range: T-200: -50°C to 125°C; T-21: -20°C to +100°C; T-41: -50°C to +100°C; T-22: -50°C to +100°C
• Operating Pressure Range: T-200: 103 to 25,855 kPag; T-21/T-41/T-22: 689 to 27,579 kPag
• Materials: Carbon steel and stainless steel
