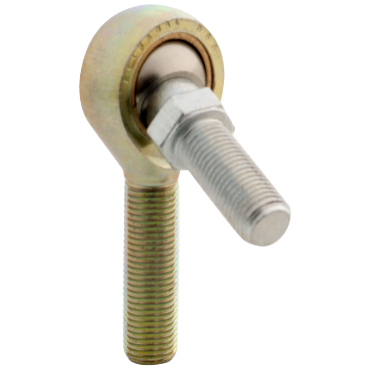

Alinabal VMS-8-G V-Series Male Rod End

Product Description

The Alinabal VMS-8-G is a V-Series Male Rod End designed for general use in various applications. This component features a right-hand male thread and is made for durability and efficiency. It is ideal for mechanical assemblies requiring reliable movement.

• Thread Size: 1/2-20 Right Hand Male Thread
• Features a plated case hardened steel ball
• Self-lubricating sintered bronze race for reduced friction

Product Highlights

This rod end combines a strong steel construction with effective lubrication technology, ensuring long life and resistance to wear and corrosion.

Product Information

Standard Information

• Brand: Alinabal
• MPN: VMS-8-G

Technical Specifications

• Thread Size: 1/2
• Ball Flat Diameter: 0.69 in
• Head Diameter: 5/8 in
• Housing Width: 1.312 in
• Static Load Rating [Max]: 2200 lbf
• Ball Diameter: 0.931 in
• Misalignment Range: ±25°
• Stud Length End to Center: 2 in
