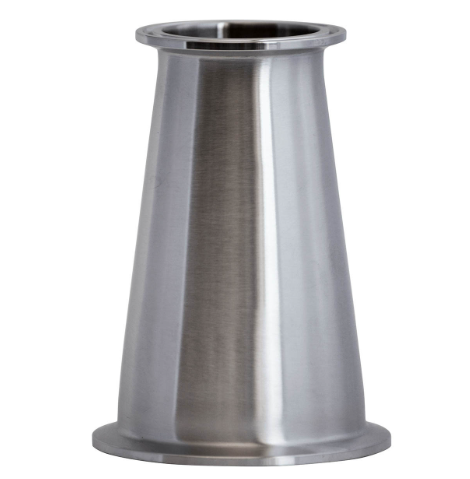

Alfa Laval 9634054260 Concentric Reducer Tri-clamp 304 Ss

Product Description

The ALFA LAVAL 9634054260 is a concentric reducer fitting designed for sanitary and industrial piping systems where a smooth, centered transition between two tube sizes is required. Built from 304 stainless steel, this fitting steps down from a 2-inch connection to a 1.5-inch connection using a tri-clamp (tri-clover) end configuration. The 31-14MP designation identifies it as part of the standard sanitary fitting series. Concentric reducers maintain centerline alignment, making them well suited for applications where consistent flow direction and drainage are critical. This fitting is installed by plumbers and pipefitters working in food processing, dairy, beverage, pharmaceutical, and related sanitary process environments.

This reducer is used in sanitary process piping systems requiring a certified, crevice-free fitting at size transitions. Typical applications include CIP (clean-in-place) systems, process lines, transfer manifolds, and hygienic fluid handling assemblies. The tri-clamp ends allow for quick, tool-assisted disassembly without cutting or threading, supporting routine inspection and cleaning cycles common in regulated process environments.

Key Features

• Concentric design maintains centerline alignment across the size transition
• 304 stainless steel construction for corrosion resistance in wet and chemical-exposure environments
• Tri-clamp ends for fast, repeatable assembly and disassembly
• 2-inch to 1.5-inch reduction suits common sanitary process line configurations
• Smooth internal bore supports hygienic flow and drainage

Compatibility

Designed as an OEM-style sanitary fitting for use in tri-clamp piping systems with 2-inch and 1.5-inch clamp-end components conforming to standard sanitary fitting dimensions.

Installation Notes

Installation is performed by qualified plumbers or pipefitters familiar with sanitary process piping standards. Shut down and depressurize the process line completely before disassembling any fittings. Use appropriate tri-clamp clamps and gaskets rated for the process media and temperature; inspect gaskets for wear before reassembly. Follow applicable sanitary piping codes and facility hygiene protocols when installing or servicing this fitting.

Technical Specifications

• Inlet Size: 2 inches
• Outlet Size: 1.5 inches
• End Connection: Tri-Clamp
• Reducer Type: Concentric
• Material: 304 Stainless Steel
• Series: 31-14MP

Standard Information

• Brand: ALFA LAVAL
• Manufacturer Part Number: 9634054260
