Alfa Laval 9634003116 45 Degree Tri Clamp Elbow 1.5 in

Product Description

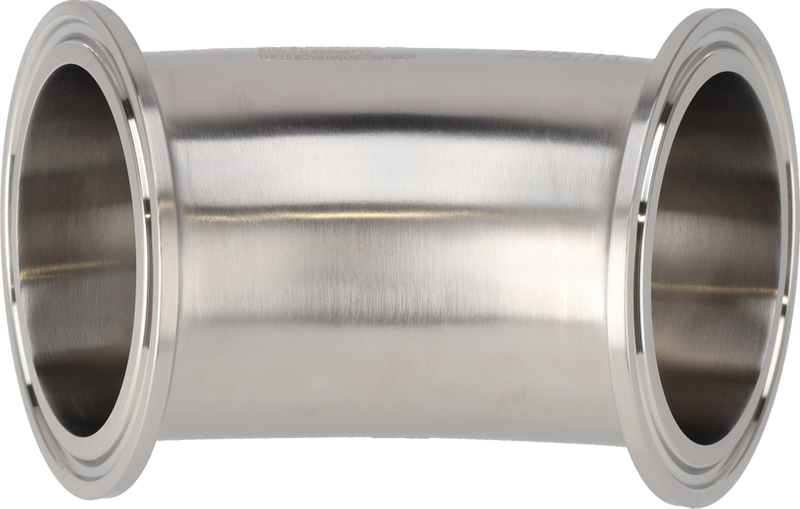

The ALFA LAVAL 9634003116 is a 45-degree tri clamp elbow fitting designed for sanitary process piping systems. Manufactured from 304 stainless steel, this elbow provides a 45-degree change of direction in a clamp-end pipeline while maintaining hygienic flow characteristics. The B2KMP series fitting is sized at 1.5 inches and uses standard tri clamp ferrule connections, making it compatible with common sanitary clamp assemblies. It is typically installed by plumbers, pipefitters, and process technicians working on food, beverage, dairy, pharmaceutical, or industrial fluid handling lines where cleanliness and corrosion resistance are required.

This fitting is suited for residential and commercial process piping applications where sanitary-grade stainless steel components are specified. The 45-degree elbow configuration is used when routing pipelines around obstructions or when a gradual directional change is preferred over a 90-degree turn. It is a direct-assembly component that accepts standard tri clamp gaskets and clamps. Installations typically follow applicable plumbing and process piping codes and are performed by licensed plumbers or qualified pipefitters familiar with sanitary tubing systems.

Key Features

• 45-degree elbow angle for gradual directional changes in sanitary pipelines
• 1.5 inch tri clamp ferrule connections on both ends
• 304 stainless steel construction for corrosion resistance and hygienic service
• B2KMP series sanitary fitting design
• Compatible with standard tri clamp gaskets and clamp assemblies

Compatibility

Designed as an OEM-style replacement or direct-install sanitary tri clamp elbow for 1.5 inch tri clamp sanitary piping systems using standard ferrule-end connections.

Installation Notes

Installation is typically performed by a licensed plumber or qualified pipefitter. Depressurize and drain the pipeline completely before removing or installing any fitting. Inspect the gasket seating surface and tri clamp ferrule for damage before assembly, and use a properly rated sanitary gasket and clamp torqued to the fitting manufacturer's standard procedure. Follow applicable plumbing and sanitary process piping codes for the installation environment.

Technical Specifications

• Connection Type: Tri Clamp (Sanitary Ferrule)
• Elbow Angle: 45 degrees
• Size: 1.5 inches
• Material: 304 Stainless Steel
• Series: B2KMP

Standard Information

• Brand: ALFA LAVAL
• Manufacturer Part Number: 9634003116
