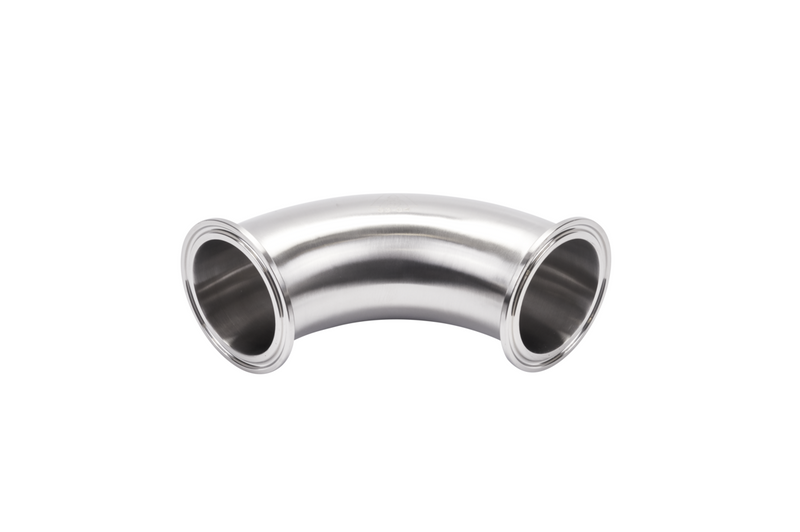

Alfa Laval 9634002917 Tri Clamp 90 Degree Elbow 2 in

Product Description

The ALFA LAVAL 9634002917 is a 2-inch tri clamp 90-degree elbow fitting constructed from 304 stainless steel. This sanitary elbow is designed for hygienic piping systems that require a directional change without compromising cleanliness standards. The tri clamp end connections allow for fast, tool-minimal assembly and disassembly, which is critical in process piping environments where frequent cleaning and inspection are required. It is installed by plumbers, pipefitters, and sanitary process technicians working in food, beverage, dairy, pharmaceutical, and industrial fluid handling systems.

This fitting is suited for sanitary process lines where a clean 90-degree turn is needed. The tri clamp connection style is a widely adopted standard in hygienic piping, allowing this elbow to integrate with standard tri clamp ferrules, gaskets, and clamps of matching size. It is appropriate for both new installations and replacement work in systems that demand smooth interior surfaces and corrosion-resistant materials.

Key Features

• 2-inch tri clamp connection on both ends for tool-efficient assembly
• 90-degree elbow geometry for direction changes in sanitary piping runs
• 304 stainless steel construction for corrosion resistance in wet and chemical environments
• Sanitary fitting design supports cleanability and hygienic process standards
• Compatible with standard tri clamp ferrules, gaskets, and clamp assemblies

Compatibility

Designed as an OEM-style sanitary fitting for use in 2-inch tri clamp hygienic piping systems. Compatible with standard tri clamp components of matching diameter and ferrule specification.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters working on sanitary process systems. Depressurize and drain the line fully before removing or installing any fitting. Inspect the gasket seating surface and replace the tri clamp gasket if worn or damaged before closing the clamp. Follow applicable plumbing codes and facility sanitation protocols when working on food-grade or pharmaceutical-grade piping.

Technical Specifications

• Connection Size: 2 inches
• Connection Type: Tri Clamp
• Elbow Angle: 90 degrees
• Material: 304 Stainless Steel
• Series: B2CMP

Standard Information

• Brand: ALFA LAVAL
• Manufacturer Part Number: 9634002917
