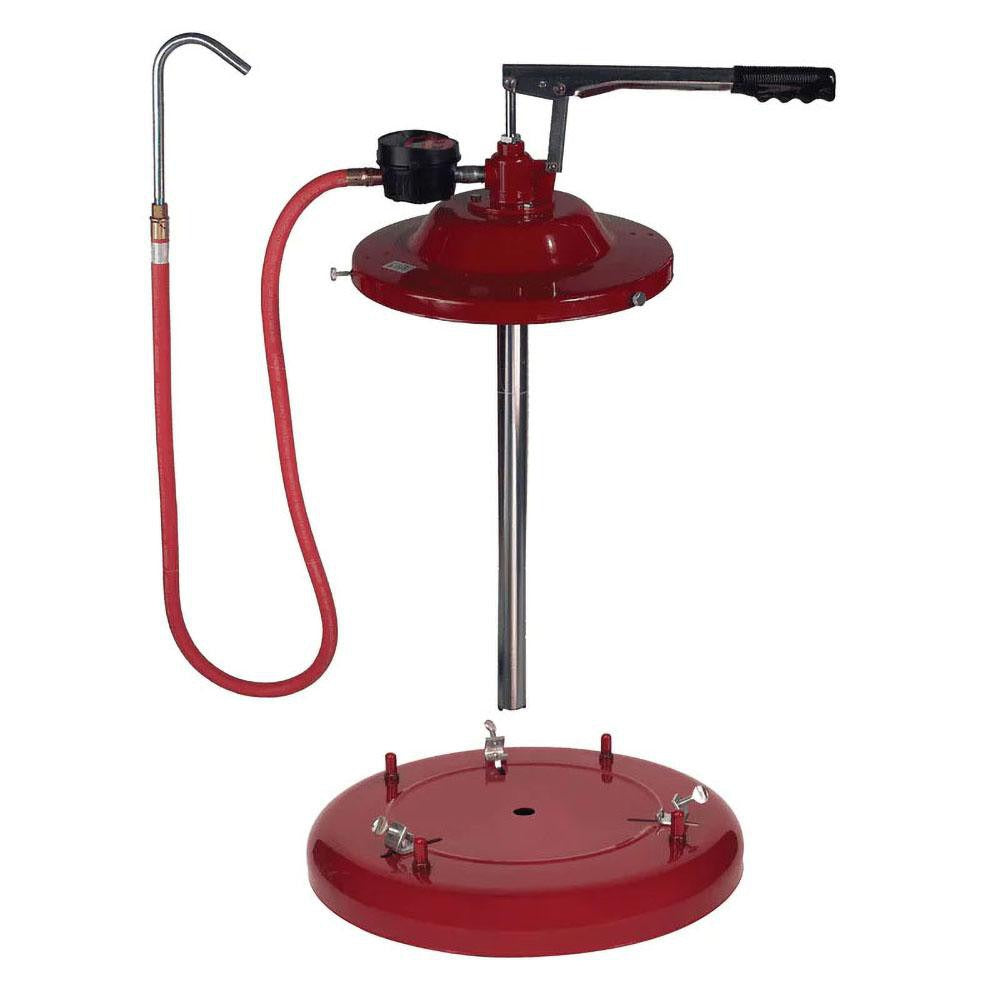

Alemite 8570-5 Lever Hand Pump 0.38 Oz/stroke Oil

Product Description

The ALEMITE 8570-5 is a lever-operated hand pump designed for transferring oil from drums and large containers in industrial and commercial lubrication applications. It delivers 0.38 oz per stroke, giving technicians precise control over fluid dispensing. The pump body is constructed from steel, aluminum, and stainless steel for durability in shop environments. It features a 1/2 inches NPTF female outlet connection and ships as a complete kit that includes a 5.5-foot discharge hose, a curved nozzle, a drum dolly, a drum cover, and an in-line electronic meter. Licensed mechanics, lube technicians, and industrial maintenance personnel are the typical installers.

The 8570-5 is suited for use with 120-pound and 16-gallon containers, and is compatible with container sizes ranging from 40 to 399.9 pounds. It is intended for oil lubrication service in garages, fleet maintenance shops, and industrial facilities where controlled, metered dispensing from large drums is required. The included in-line electronic meter aids in tracking fluid usage, making it appropriate for operations that require dispense records.

Key Features

• 0.38 oz per stroke flow rate for controlled oil dispensing
• Steel, aluminum, and stainless steel construction for shop durability
• 1/2 inches NPTF female outlet for standard hose and fitting connections
• Compatible with container sizes from 40 to 399.9 pounds
• Includes 5.5-foot hose, curved nozzle, drum dolly, drum cover, and in-line electronic meter
• Lever-actuated design requires no external power source

Compatibility

Compatible with 120-pound drums and 16-gallon containers; rated for containers in the 40 to 399.9-pound range. Designed for oil lubrication fluid service only.

Installation Notes

Installation and servicing should be performed by qualified maintenance or lube technicians familiar with drum pump equipment. Before mounting the pump, ensure the drum is secured on the included dolly and that any pressure in the container has been relieved. Confirm that the outlet fitting and discharge hose connections are tight at the 1/2 inches NPTF thread before operating. Use only with compatible fluids as specified; do not use this pump with fluids outside its rated application.
