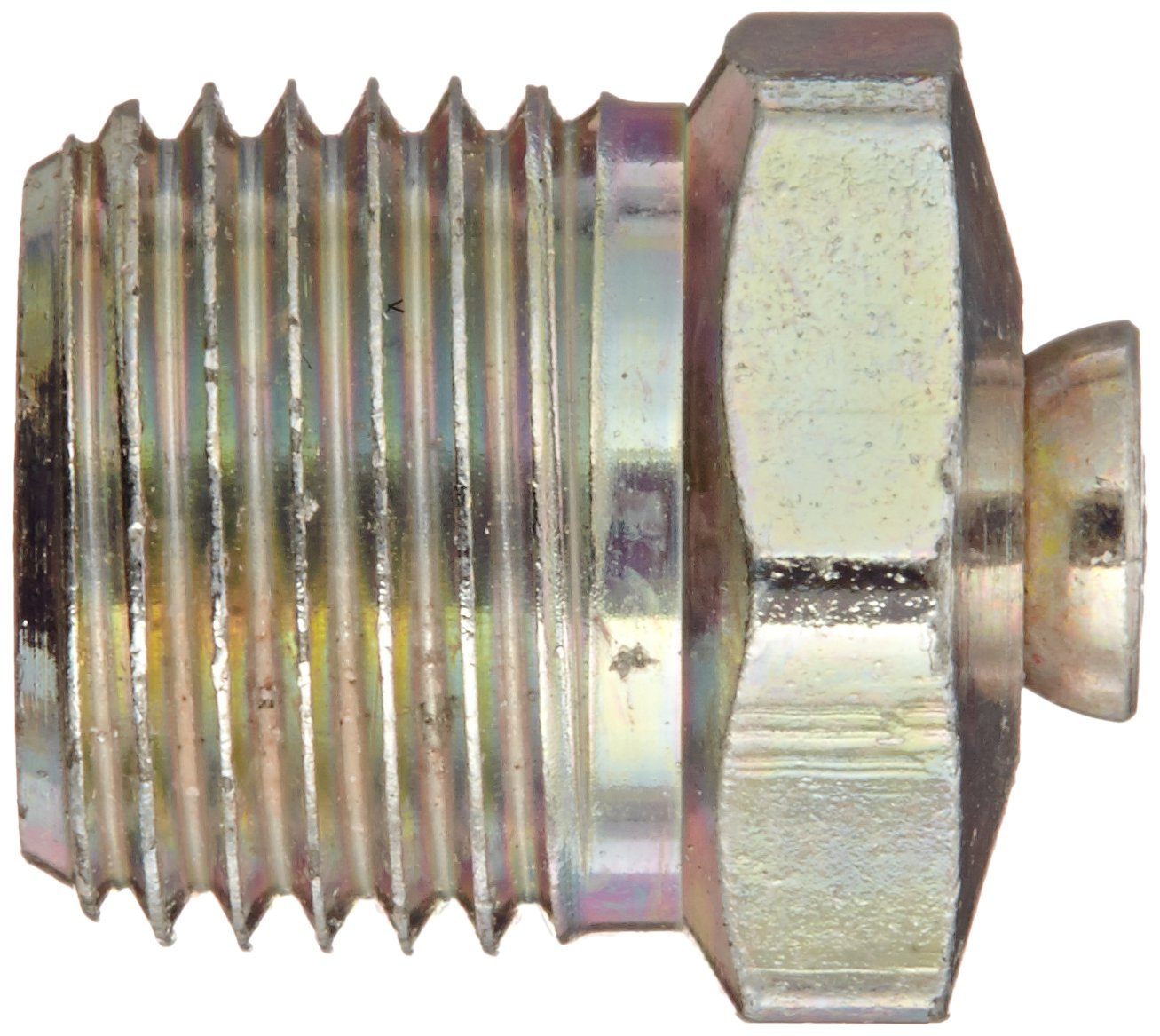

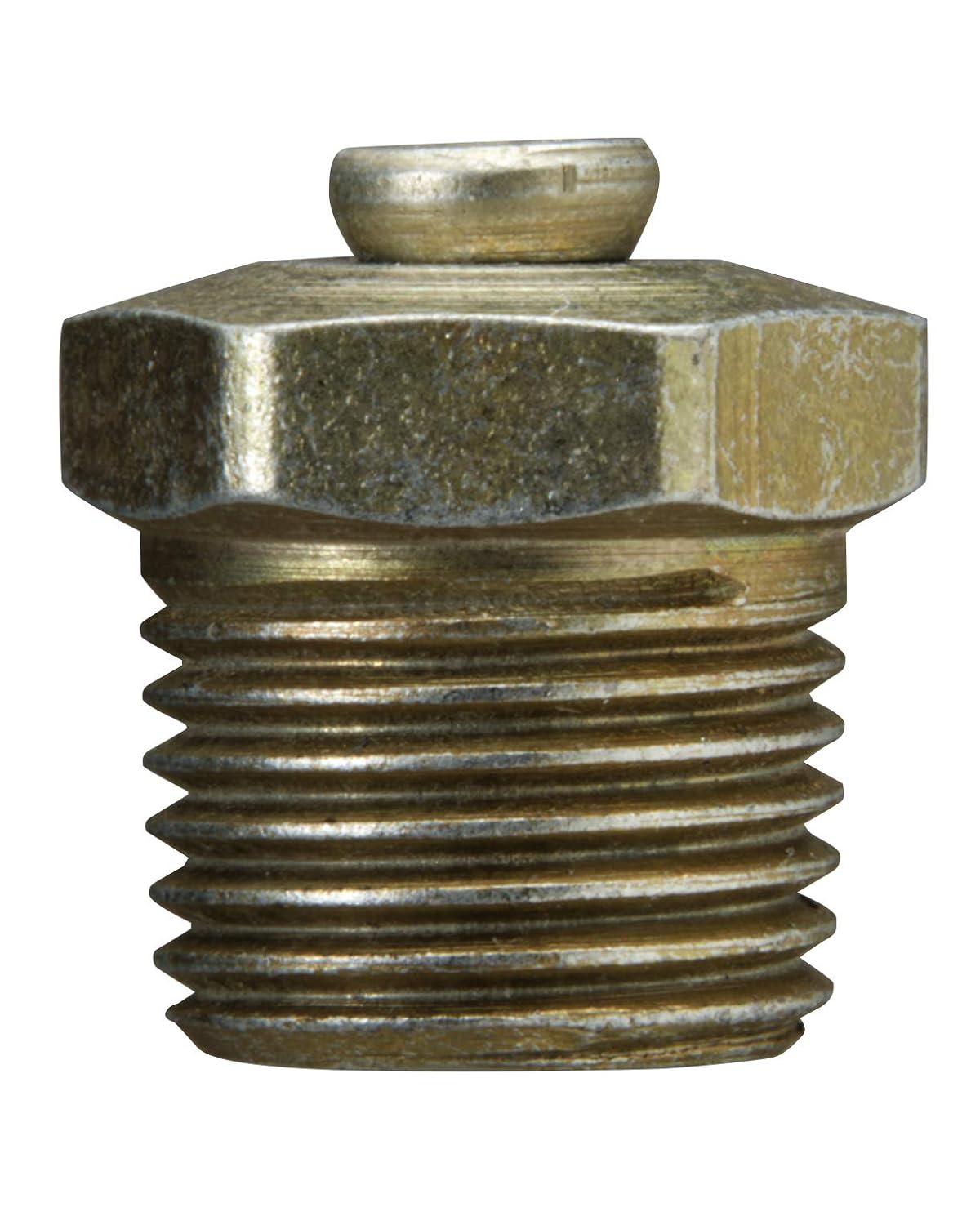

Alemite 323060 Pressure Relief Fitting Straight 1/8 PTF SAE 15-25 psi

Product Description

The Alemite 323060 Pressure Relief Fitting is designed to open at 25 psi to allow excess pressure to vent and close when pressure drops below 15 psi. This fitting features a trivalent zinc plating for corrosion resistance and a 1/8 PTF SAE Special Short connection. It is suitable for use with grease or oil and is RoHS compliant, making it ideal for gear box housings and bearings, including king pins and universal joints.

• Relief pressure preset at 15-25 psi
• Trivalent zinc plating for corrosion resistance
• 1/8 male PTF-SAE Special Short connection

Product Highlights

Reliable pressure relief fitting with corrosion-resistant zinc plating, compatible with grease or oil, and RoHS compliant.

Product Information

Standard Information

• Brand: Alemite
• MPN: 323060
• Application: Gear Box Housings, Bearings

Technical Specifications

• Relief Pressure: 15-25 psi
• Material: Zinc-Plated Steel
• Connection Type: 1/8 PTF-SAE Special Short
• Overall Length: 1/2 inch
• Shank Length: 19/64 inch
• Hex Size: 7/16 inch
• Operating Pressure: Up to 25 psi
• Compliance: RoHS
