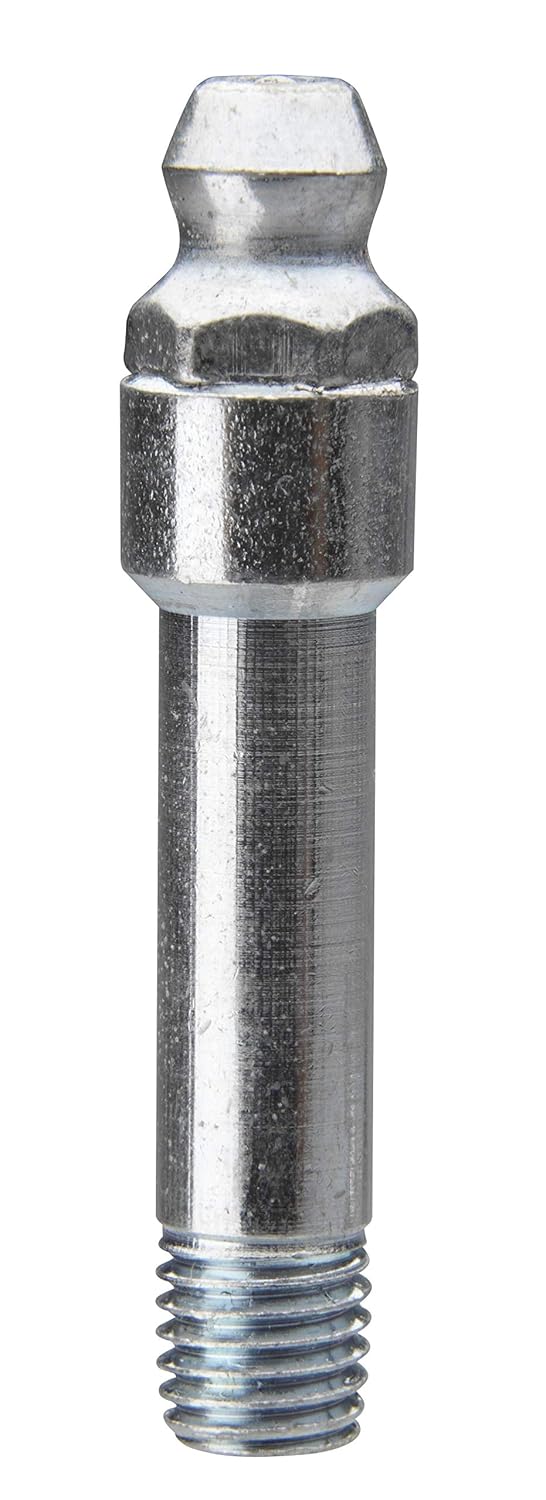

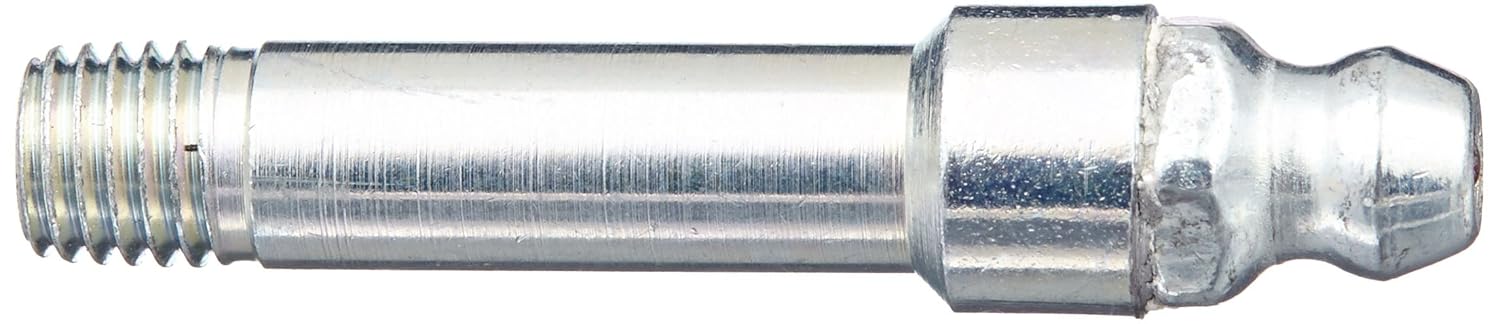

Alemite 3014-B Hydraulic Loose Fitting Straight 1/4-28 Taper Thread 1 Piece

Product Description

The Alemite 3014-B hydraulic fitting is a straight 1/4-28 taper thread fitting. It features an overall length of 1-5/8 inches, a shank length of 1 inch, and a hex size of 5/16 inches. Made from zinc-plated steel, it offers improved resistance to corrosion and meets RoHS standards. Its dirt-excluding check ball and 72-hour salt spray test performance ensure durability and reliability. Commonly used in automotive and industrial machines, this fitting complies with SAE J534 standards.

• Overall Length 1-5/8 inches
• Shank Length 1 inch
• Hex Size 5/16 inches

Product Highlights

Alemite 3014-B is a straight hydraulic 1/4-28 taper thread fitting with a zinc-plated finish for corrosion resistance and durability.

Product Information

Standard Information

• Brand: Alemite
• MPN: 3014-B

Technical Specifications

• Overall Length: 1-5/8 inches
• Shank Length: 1 inch
• Hex Size: 5/16 inches
• Thread Type: 1/4-28 taper thread (SAE-LT)
• Material: Zinc-Plated Steel
• Finish: Zinc
• Usage: Industrial machines, cars, trucks
• Conformance: SAE J534
