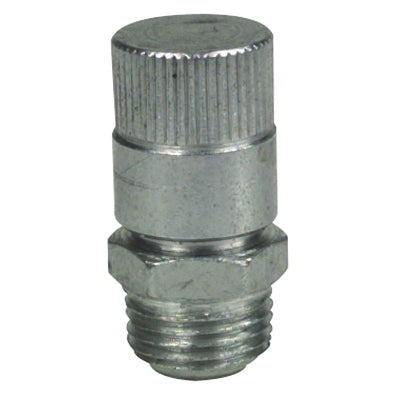

Alemite 1958 Hydraulic Loose Fitting Straight SAE Special Extra Short Length 31/32 Shank Length 1/4 Hex Size 7/16 1/8 PTF

Product Description

The Alemite 1958 Hydraulic Loose Fitting is built for efficient hydraulic operations. This straight fitting comes with SAE Special Extra Short design, making it suitable for tight spaces in industrial machines and heavy equipment.

• SAE Special Extra Short design
• Length of 31/32 inch
• Hex size of 7/16 inch

Product Highlights

Designed with a 1/8 inch PTF, the Alemite 1958 ensures a strong and secure connection, crucial for maintaining optimal hydraulic pressure. The carbon steel fitting comes with a zinc-plated finish, ensuring durability and resistance to corrosion.

Product Information

Standard Information

• Manufacturer: Alemite
• Brand: Alemite

Technical Specifications

• Length: 31/32 inch
• Shank Length: 1/4 inch
• Hex Size: 7/16 inch
• Male Thread: 1/8 inch (NPTF)
• Material: Carbon Steel
• Finish: Zinc-Plated
• Operating Pressure: 10,000 psi
• Weight: 0.03 lb
